A-WD06

Quantity:
  • A-WD06
  • ANE
  • alloy steel

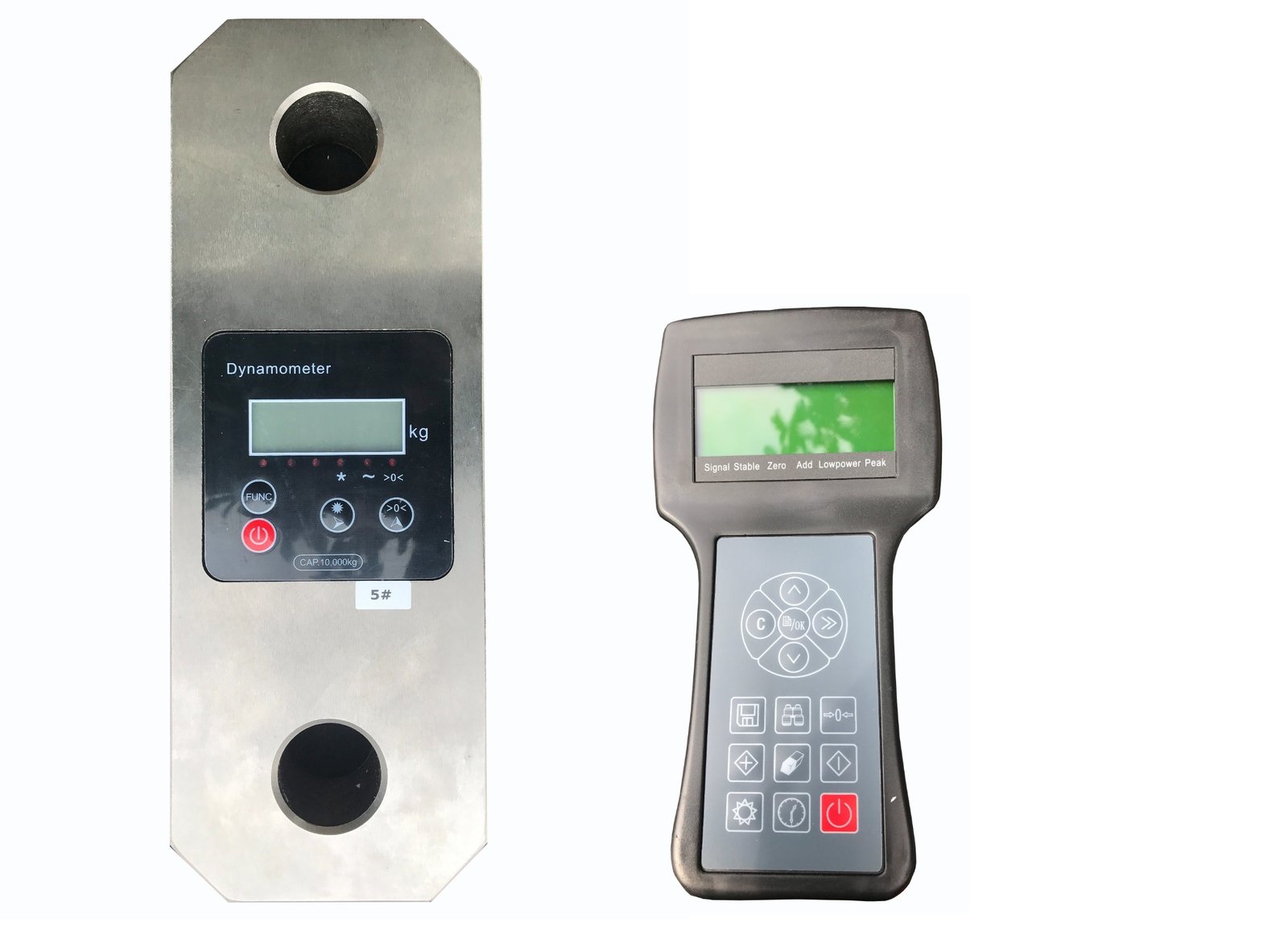

A-WD06 Wireless Dynamometer/Dyna-Link

A-WD06



Description

A-WD06 wireless Dyna-link load gauge is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weigher or to measure force, wireless Dyna-link load gauge is microprocessor controlled for precision accuracy, calibration is easier with wireless indicator.

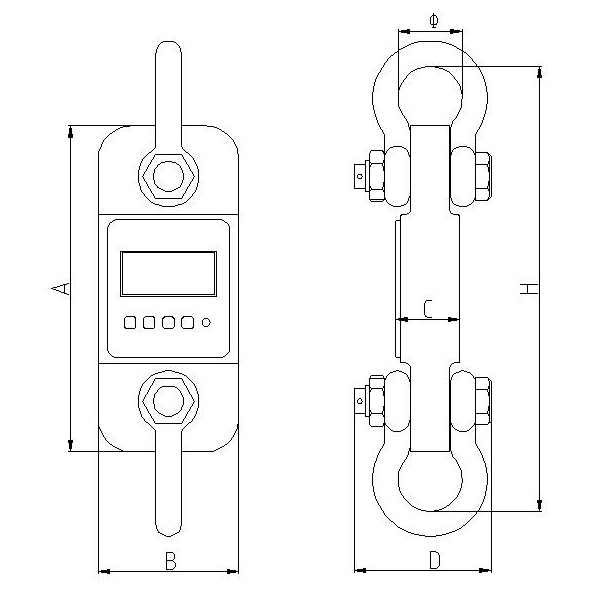

Main Dimensions and Accessories(mm)

size



Model

CAP

Div

A

B

C

D

φ

H

A-WD06

1t

0.5kg

245

112

35

190

43

335

A-WD06

2t

1kg

245

116

35

190

43

335

A-WD06

3t

1kg

260

123

35

195

51

365

A-WD06

5t

2kg

285

99

55

210

58

405

A-WD06

10t

5kg

320

112

55

230

92

535

A-WD06

20t

10kg

420

128

70

260

127

660

A-WD06

30t

20kg

420

138

84

280

146

740

A-WD06

50t

20kg

465

150

104

305

184

930

A-WD06

100t

50kg

570

190

132

366

229

1230


Feature

Accuracy:

Grade, n=3000

Sample Rate

80 times / second

Scale interval

1/2/5/10/20/50 for   option

Display

6   bits LCD, 6 state indicating signals

Communication   interface

Wireless signal

Power supply:

Battery AA 1.5V*3

Operating temperature/humidity:

04090%RH

transporting temperature:

-2050


Specifications

Display:

25mm (1’’) 6   digits LCD

Stable Time:

10seconds;

Overload Indication:

100%

F.S. + 9e

Max. Safety Load:

125%

F.S.

Ultimate Load:

200%

F.S.

Battery Life:

40 hours

Battery Type:

LR6(AA)size   alkaline batteries. 1.5V3

Operating Temp:

- 10 ~ + 40

Operating Humidity:

85% RH under 20

Remote Controller   Distance:

Min. 15m

Wireless Frequency:

2.4GHz(default),433MHz,860MHz(optional)

Wireless Distance:

Min. 80m(default)   [200m(optional)]

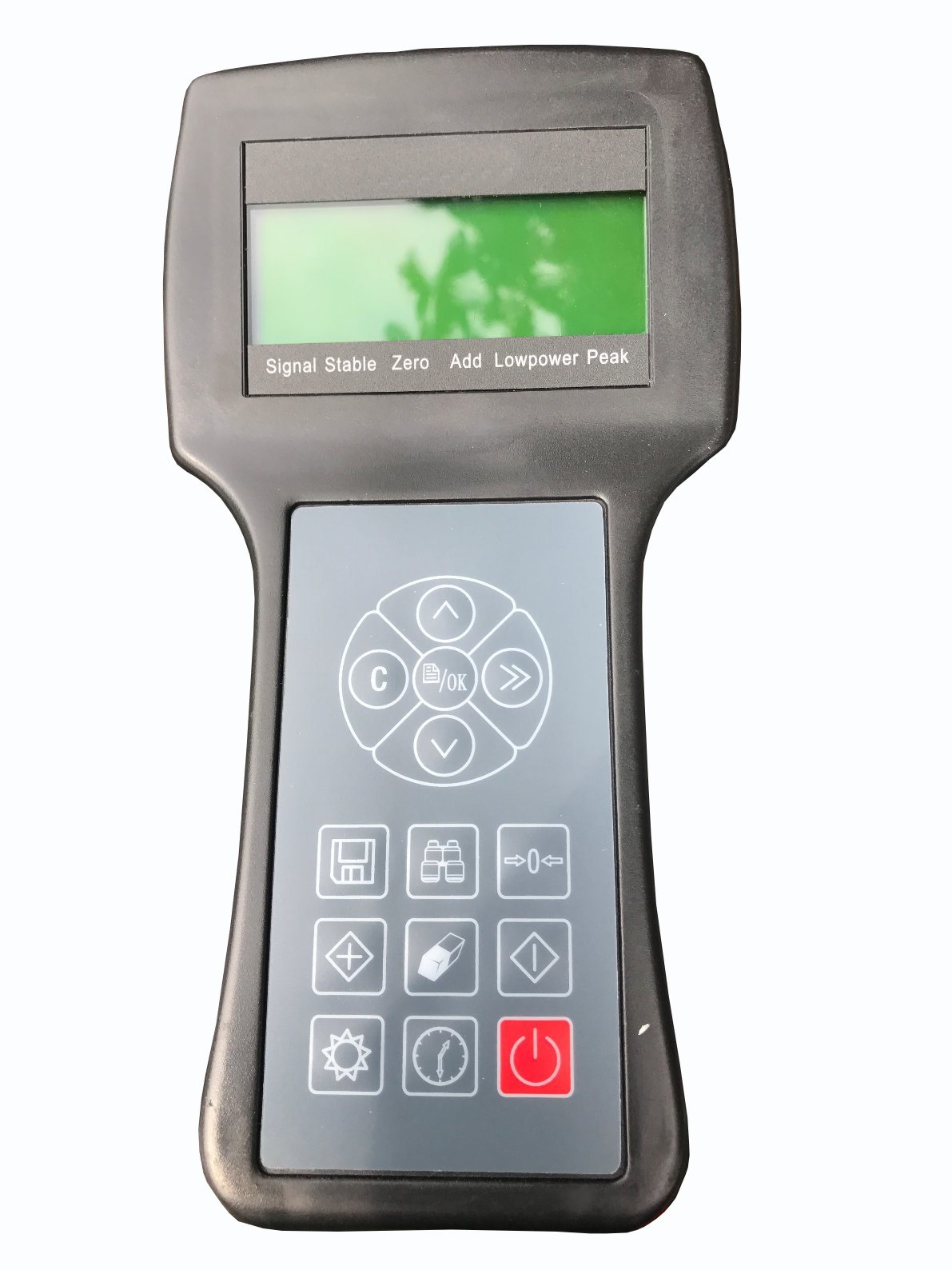

A-WI02 Wireless indicator

 A-WI02



Work Principle

The load cell's out–put signal is digital, parameter adjustment and temperature compensation will be finished in internal. Though 434MHz wireless module to launch after reasonable. Handhold receive load cell output and its internal battery power consumption values then show them on the LCD display ,and handheld through RS232 output to computer or large-screen display.





Product Characteristics

Display: LCD 192*64 dot with backlighting , 6 bit show weight value

Hold on the peak value, can contact with computer or large-screen display by RS232(Option)

UnitkglbtkN.



Technical Parameter

Wireless Frequency:

434MHz

Wireless Distance:

Min:200mdefault

A/D Conversion Rate:

50times/seconds

Work temperature

040

Battery Life:

48 hours for one   charging

Non-Linearity:

0.01%F.S

Stable Time:

5 seconds

Citation:

GB/T7551-2008/ OIML   R60



Notice

Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from. For charge, according to Li-ion battery. Do not excess discharge.
