A-ST03

S Type Tension Load Cell
Quantity:
  • A-ST03
  • ANE
  • Alloy steel/Stainless steel

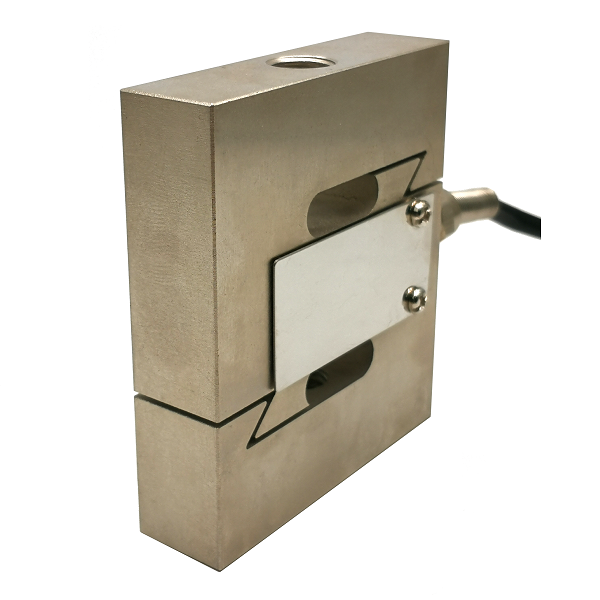

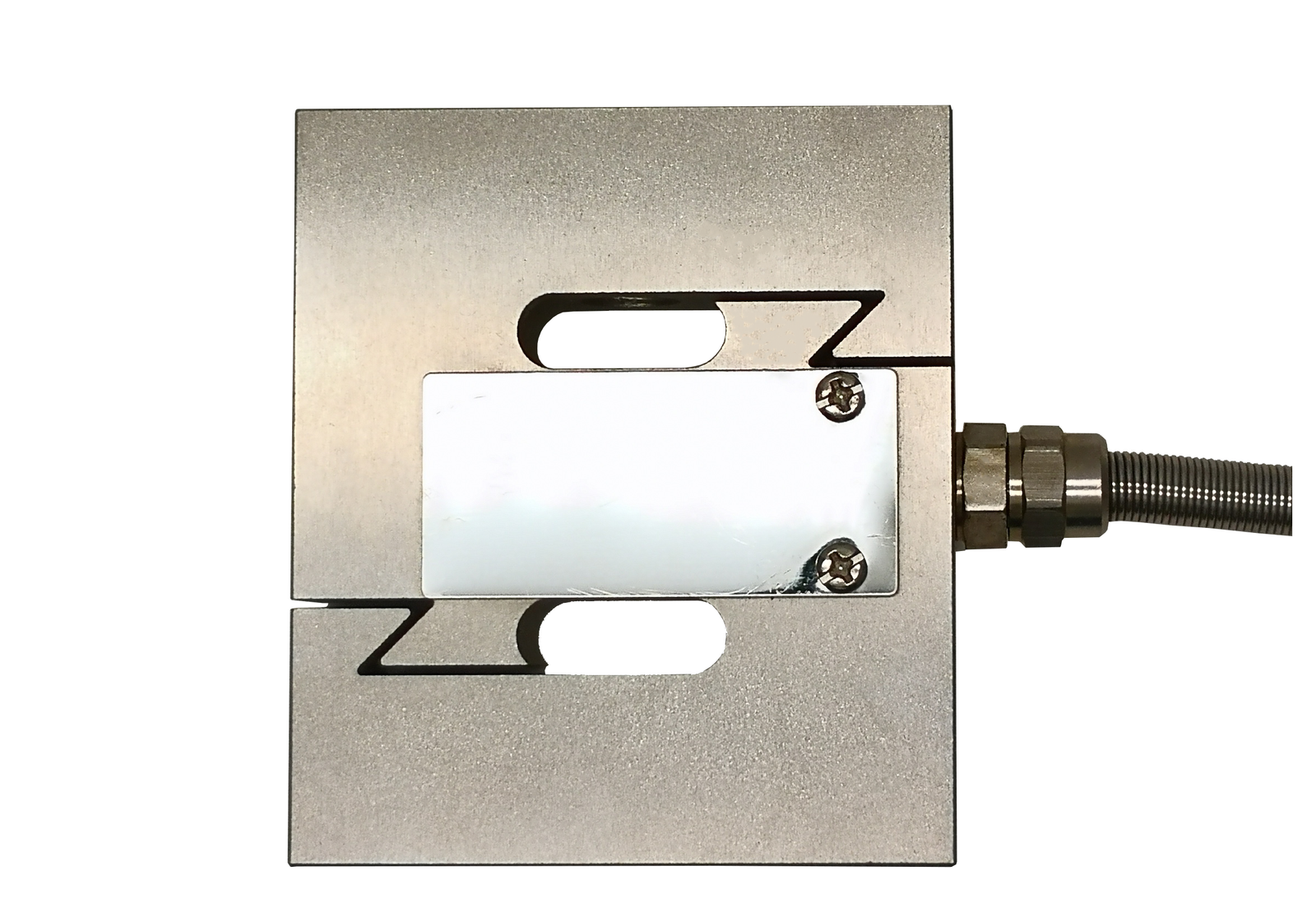

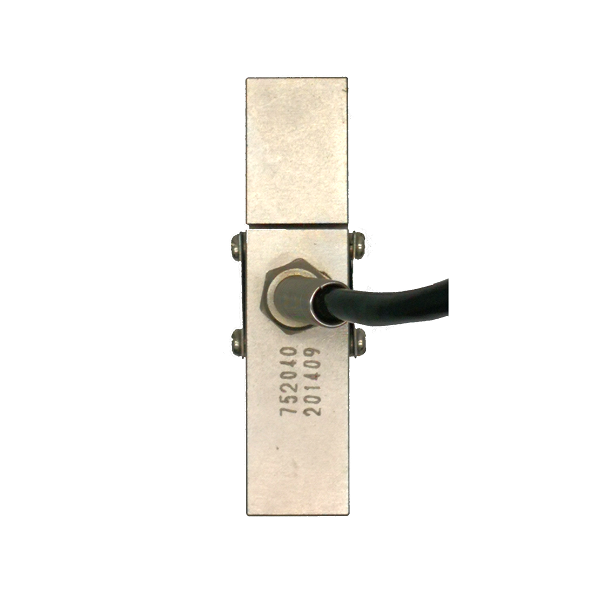

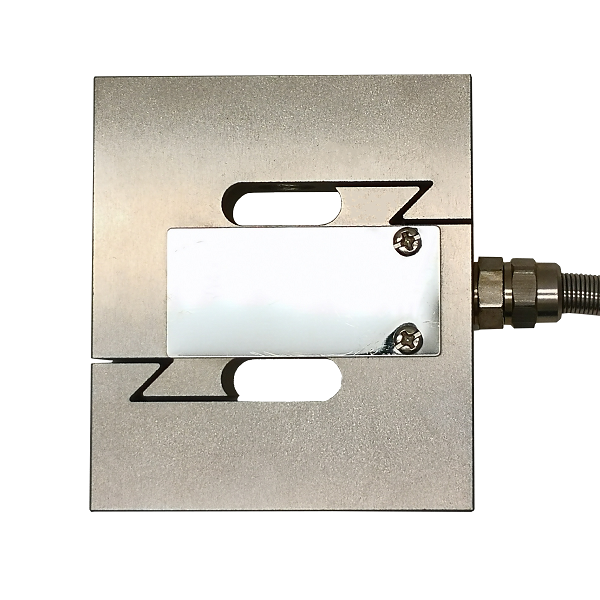

A-ST03 S type tension load cell

A-ST03

Description

A-ST03 S-type load cell has high accuracy and wide measuring range. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized



Application

  • Electro crane scales

  • Blending scale

  • Packing scales

  • Electromechanical scales

  • Special testing device

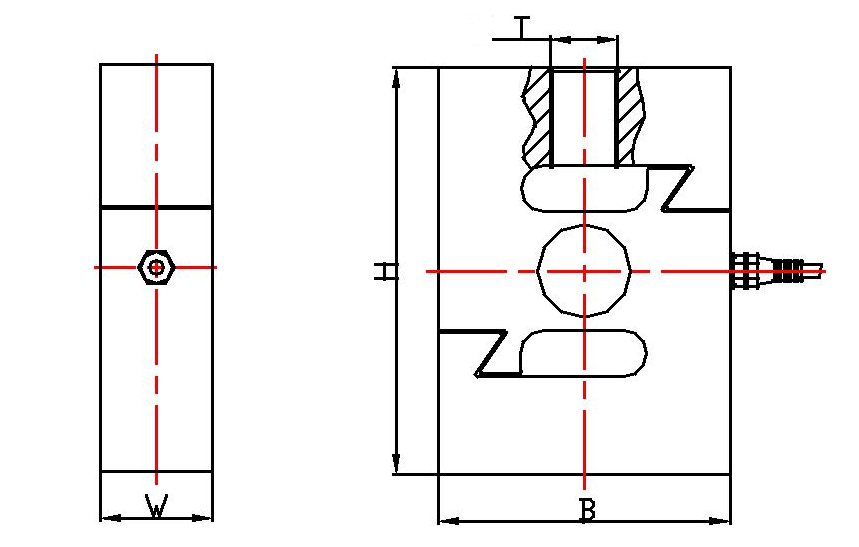

Main Dimensions and Accessories(mm)

A-ST03


Capacity

Size

Ton

B

W

H

T

0.1,   0.2, 0.3, 0.5, 0.75

70

19

80

M12

1, 1.5

70

25

80

M12

2, 3, 5

95

25

108

M18 X1.5

7.5, 10

130

51

178

M30 X2

15, 20

160

60

190

M39 X2


Specifications

Capacity

0.1~20t

Zero balance

±1%F.S

Rated output

2.0mV/V±0.1%

Input resistance

400±10Ω

Accuracy class

0.03,0.05

Output resistance

350±5Ω

Non-linearity

0.02%F.S

Safe overload

150%F.S

Hysteresis

0.02%F.S

Ultimate overload

200%F.S

Creep in 30 minutes

0.02%F.S

Excitation voltage

10~12V DC

Temperature effect span

0.02%F.S/10℃

Maximum excitation voltage

15V DC

Temperature effect zero

0.02%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+70℃

Material      Alloy steels/Stainless steel

Cable, 4~6m

+Exc (Red) ; -Exc (Black); +Sig (Green); -Sig (White)
