A-ST02

Tension Type Load Cell
Quantity:
  • A-ST02
  • ANE
  • alloy steel

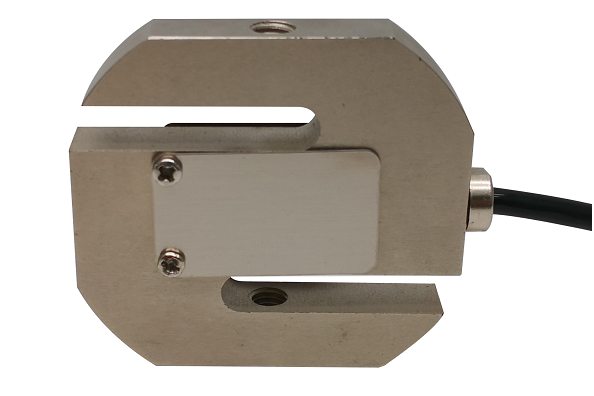

A-ST02 single point load cell

A-ST02

Description

The S-type load cell, as the name indicates, can be easily identified by S-shaped body. They can be loaded either in tension or compression, and used for single or multiple-cell application if the output is rationalized



Application

  • Electro-mechanical conversion scales

  • Silo/hopper/tank weighing

  • Crane scales

  • Fork-lift scales

  • Dosing/filling

  • Universal material tester

  • Tensile/pulling force measurement

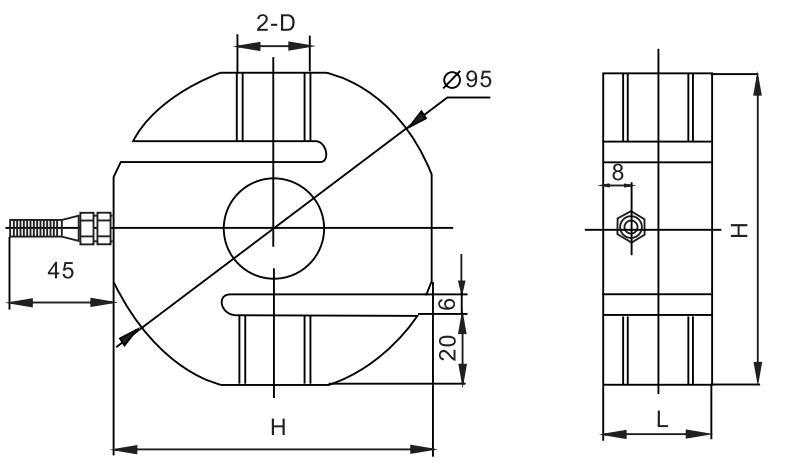

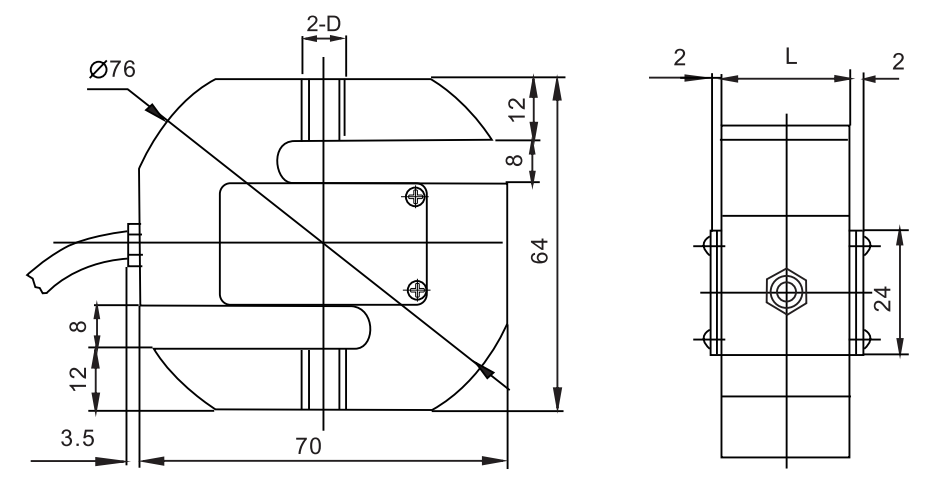

Main Dimensions and Accessories(mm)

A-ALT02 SIZE

Capacity(kg)

D

L(mm)

30;50;75;100;150

M8

12

200;250;300;500

M12

20

700;1000

M12

25

 A-ST02 SIZE

Capacity(t)

D

L

H

1.2; 1.5; 2; 2.5; 3; 5

M20

32

90

7.5

M24

40

90

10

M30*2

50

110


Specifications

Capacity

0.3~10t

Zero balance

±1%F.S

Rated output

2.0, 3.0mV/V±0.1%

Input resistance

380±10Ω

Accuracy class

0.03,0.05

Output resistance

350±5Ω

Non-linearity

0.03%F.S

Safe overload

150%F.S

Hysteresis

0.03%F.S

Ultimate overload

200%F.S

Creep in 30 minutes

0.03%F.S

Excitation voltage

10~12V DC

Temperature effect span

0.015%F.S/10℃

Maximum excitation voltage

15V DC

Temperature effect zero

0.02%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+70℃

Material      Alloy steels/Stainless steel
