A-ST01

Tension Type Load Cell
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • A-ST01

  • ANE

  • alloy steel

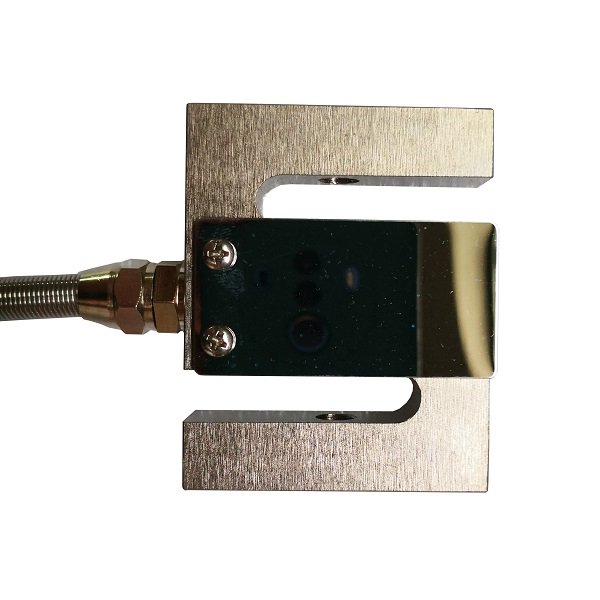

A-ST01 S type load cell

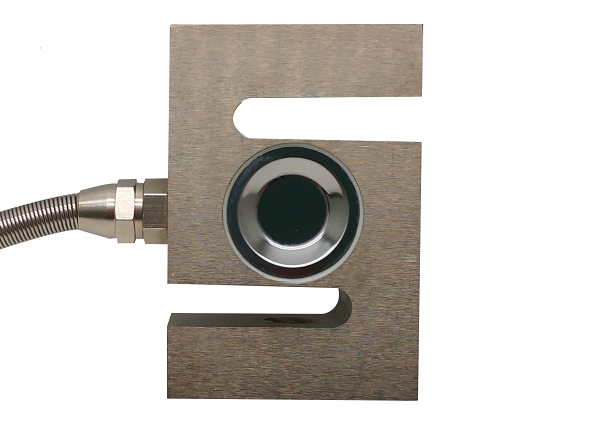

S type load cellA-ST01-ZL

Description

Aluminum load cell, it is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suitable for electronic top scale, floor scale and other weighing equipment.



Application

  • Electro-mechanical conversion scales

  • Silo/hopper/tank weighing

  • Fork-lift scales

  • Dosing/filling

  • Tensile/pulling force measurement

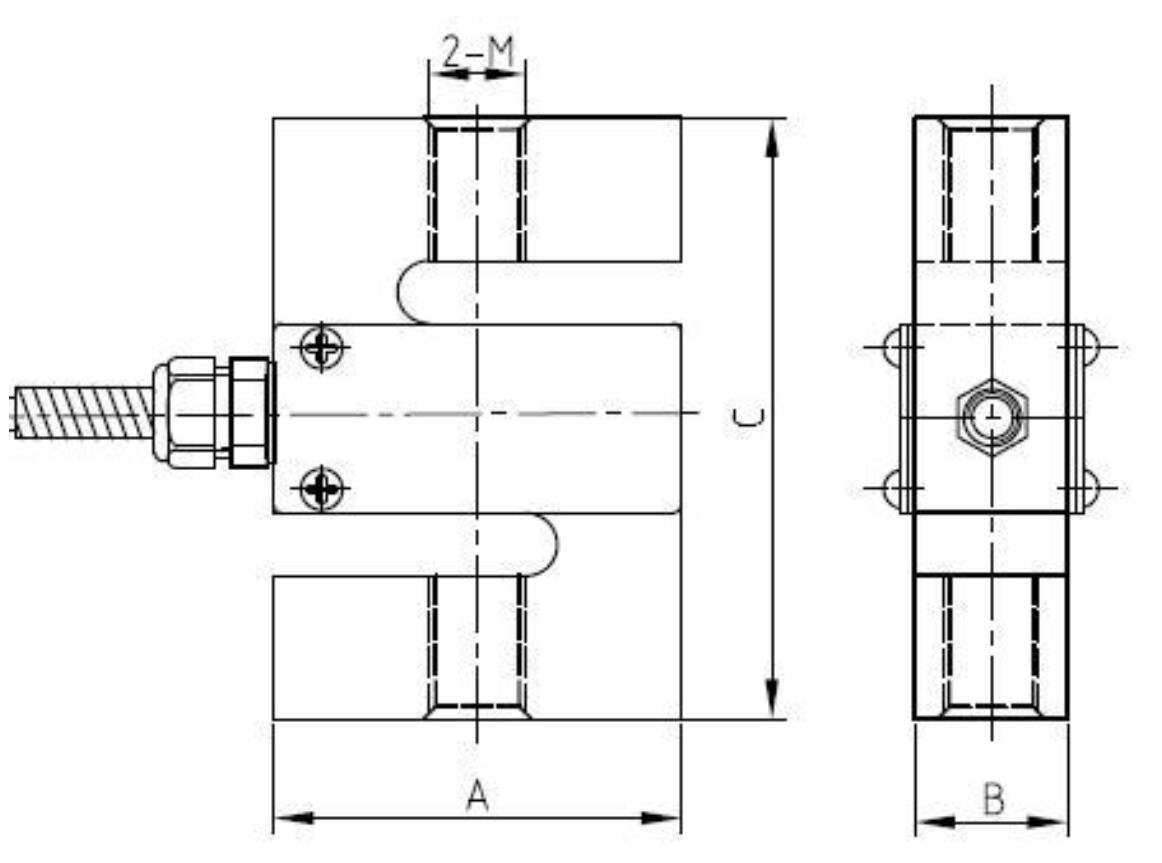

Main Dimensions and Accessories(mm)

10~500kg

A-ST01

1~10ton

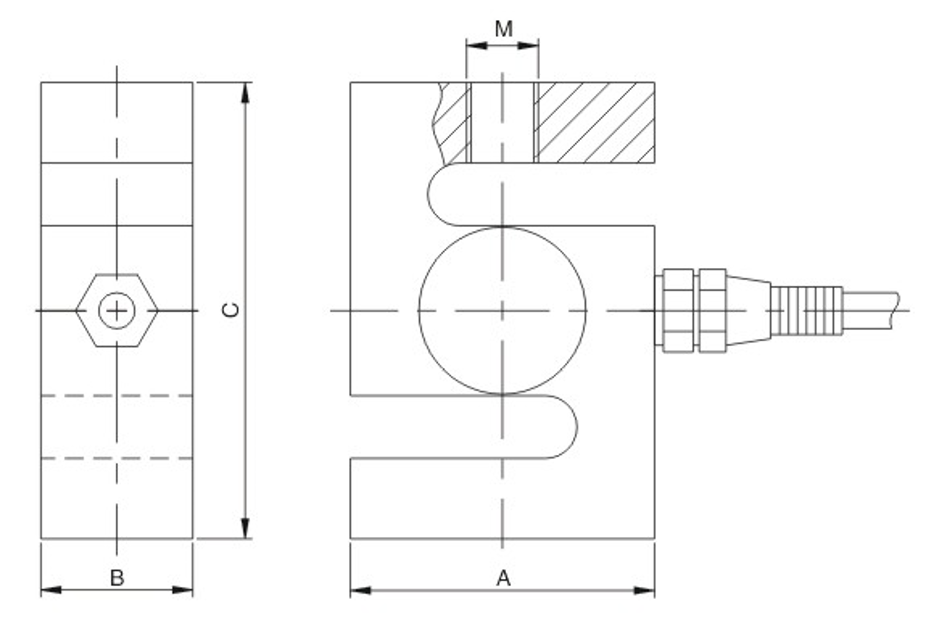

size2


Capacity

Size(mm)

Kg

A

B

C

M

10~50

50.8

12.7

63

M8X1.25

100~500

50.8

19

76.2

M12×1.75

1000

50.8

25.4

76.2

M12×1.75

2000

50.8

25.4

76.2

M16×2.0

3000~5000

76.2

25.4

108

M18×1.5

Specifications

Capacity

0.01~5t

Zero balance

±1%F.S

Rated output

2.0, 3.0mV/V±0.1%

Input resistance

380±10Ω

Accuracy class

0.03,0.05

Output resistance

350±5Ω

Non-linearity

0.03%F.S

Safe overload

150%F.S

Hysteresis

0.03%F.S

Ultimate overload

200%F.S

Creep in 30 minutes

0.03%F.S

Excitation voltage

10~12V DC

Temperature effect span

0.02%F.S/10℃

Maximum excitation voltage

15V DC

Temperature effect zero

0.02%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+70℃

Material      Alloy steels/Stainless steel
