A-SBT10
ANE
Stainless steel

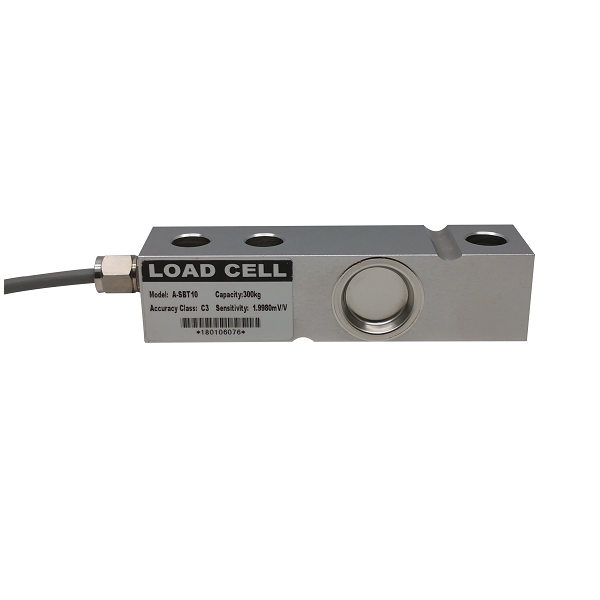

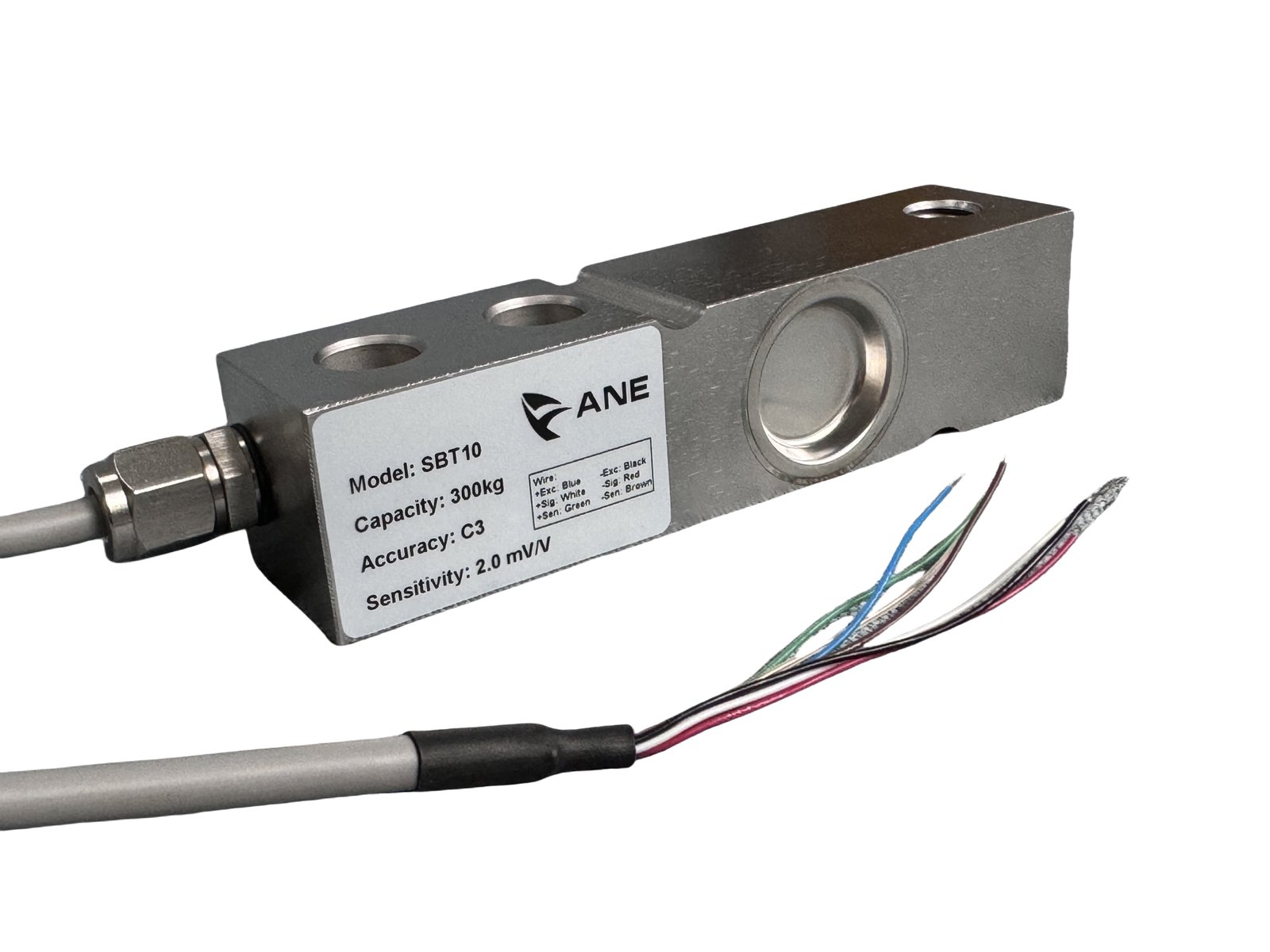

A-SBT10 full stainless steel shear beam load cell
Description
A-SBT10 stainless steel load cell provides the weighing industry with the ultimate protection for hostile environments, its low profile and all welded sealing combined with high accuracy makes this load cell ideally suited for low profile platform scales, easily install.
Application
Low proile platforms
Pallet truck weighing
Tank and silo weighing
Harsh environment weighing
Food industry weighing
Main Dimensions and Accessories(mm)

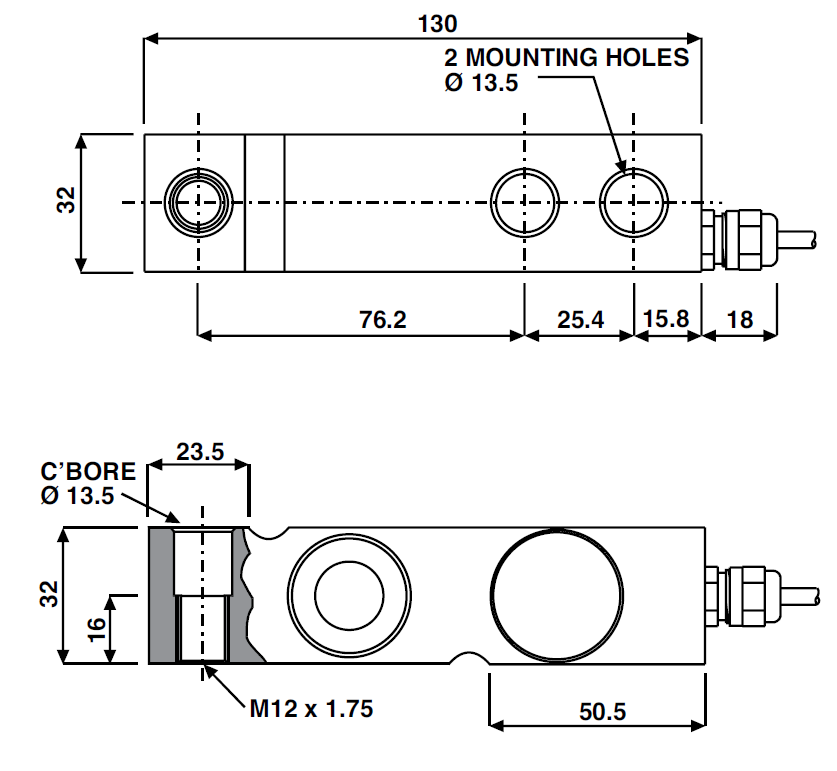

300, 500, 1000 and 2000kg

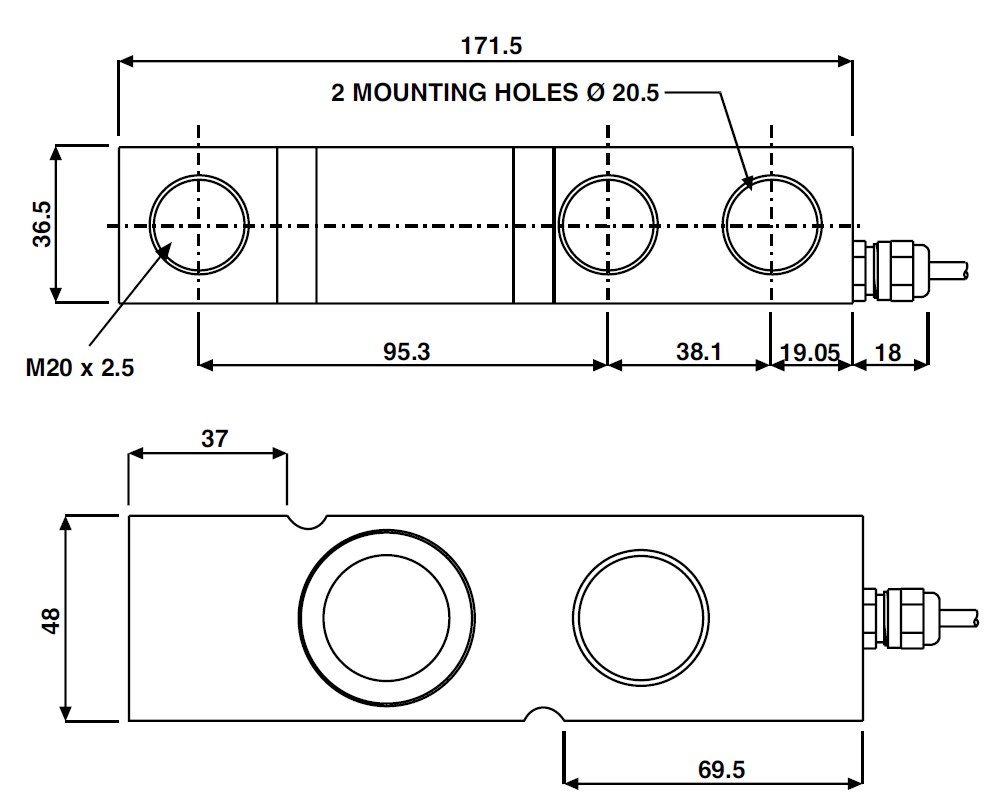

3000 and 5000kg
Specifications
Capacity | 300kg, 500kg, 1000kg , 2000kg ,3000kg ,5000kg | ||
Rated output | 2.0 for kg | Input resistance | 380±10Ω |
3.0 for lbs | Output resistance | 350±3Ω | |
Total error | 0.05,C3 | Safe overload | 150%F.S |
Creep in 30 minutes | <±0.02%F.S | Ultimate overload | 300%F.S |
Temperature effect span | <±0.02%F.S/10℃ | Excitation voltage | 10V AC/DC |
Temperature effect zero | <±0.02%F.S/10℃ | Maximum excitation voltage | 15V AC/DC |
Compensated temperature range | -10～+40℃ | Insulation resistance | ≥5000MΩ |
Operating temperature range | -30～+70℃ | Environmental protection | IP67/68 |
Zero balance | ±1%F.S | Material stainless steel | |
Cable: 5m Wring: +Exc (Blue) ;－Exc (Black);＋Sig (White);－Sig (Red); ＋Sen (Green);－Sen (Brown) | |||
