A-SBT05

Shear beam load cell

Quantity:
  • A-SBT05
  • ANE
  • Stainless steel

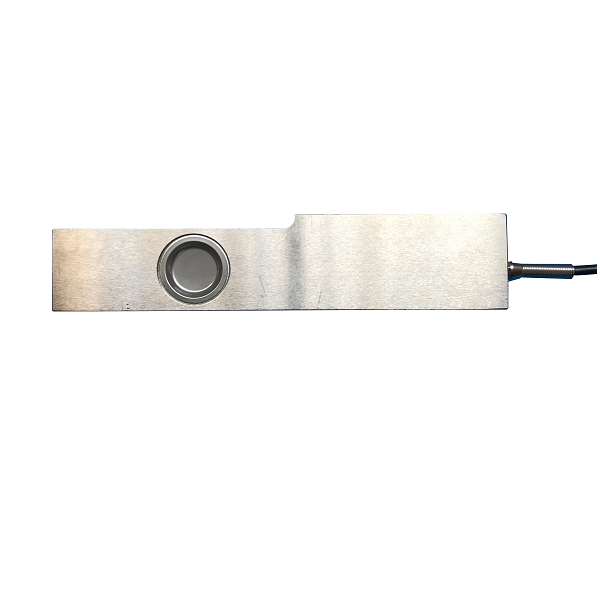

A-SBT05 Shear Beam load cell

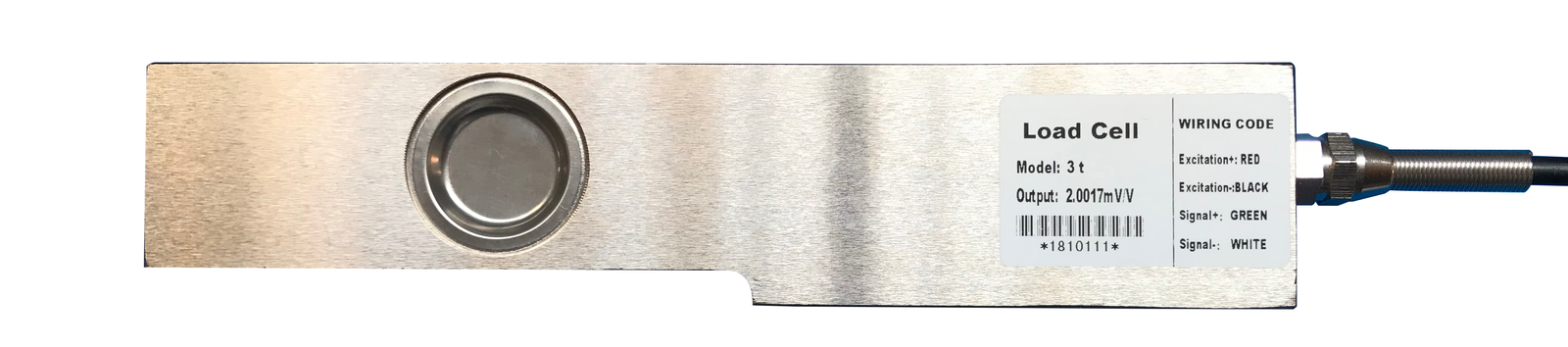

 SBT05-ZL

 Description

A-SBT05 Single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.

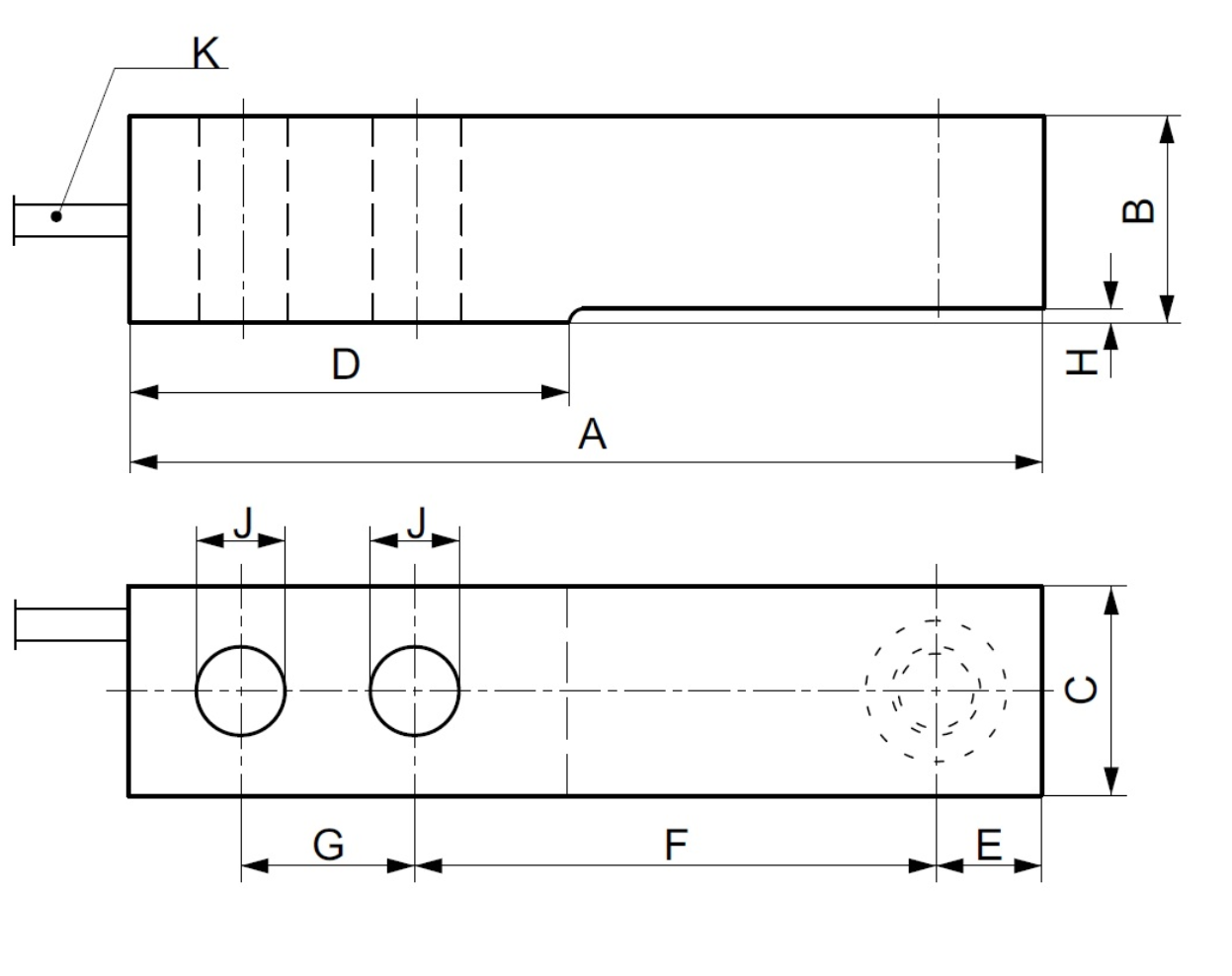

Main Dimensions and Accessories(mm)

SBT05-SZ


Cap

A

B

C

D

E

F

G

H

J

K

110/220/550kg, 1.1t

133.4

30.2

30.7

57.7

15.4

76.2

25.4

1.7

13

3m

1.76t

133.4

30.2

30.7

51.7

15.4

76.2

25.4

1.7

13

3m

2.2t

171.5

36.5

36.8

76.2

19.1

95.3

38.1

2.5

20.5

6m

4.4t

171.5

42.9

42.9

76.2

19.1

95.3

38.1

2.5

20.5

6m

10t

245.1

72.9

60

119.9

30.2

134.9

50

11.2

27

6m



Specifications

Capacity

110kg~10t

Input resistance

380±10Ω

Rated output

2.0 mv/v±0.1%

Output resistance

350±3Ω

Total error

0.05,C3

Safe overload

150%F.S

Creep in 30 minutes

<±0.02%F.S

Ultimate overload

300%F.S

Temperature effect span

<±0.02%F.S/10℃

Excitation voltage

10V AC/DC

Temperature effect zero

<±0.02%F.S/10℃

Maximum excitation voltage

15V AC/DC

Compensated temperature range

-10~+40℃

Insulation resistance

≥5000MΩ

Operating temperature range

-30~+70℃

Environmental protection

IP67/68

Zero balance

±1%F.S

Material,    Alloy steel/stainless steel

Cable:  3m@<2t;6m@>2t

Wring: +Exc (Blue)   ;-Exc   (Black);+Sig   (White);-Sig   (Red); +Sen   (Green);-Sen (Gray)
