A-NHT04

NHS Compression Load Cell
Quantity:
  • A-NHT04
  • ANE
  • alloy steel

A-NHT04 Compression load cell

 NHS

Description

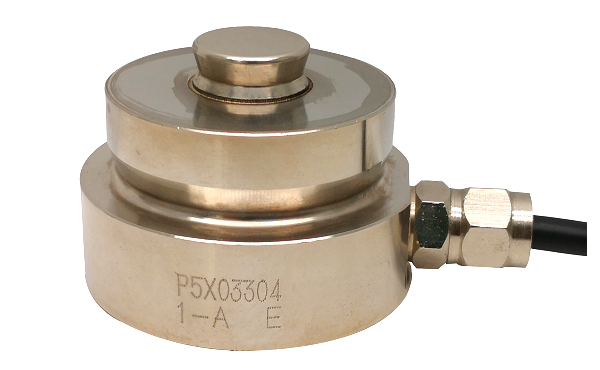

A-NHT04 compression type load cell with temperature compensated and hermetically sealed structure, fast dynamic response. It is simple to install, easy to use.



Application

  • Electronic truck scale

  • Axle load scale

  • Hopper scale

  • Warehouse scale

  • Silo scale

  • Press force checking and calibration

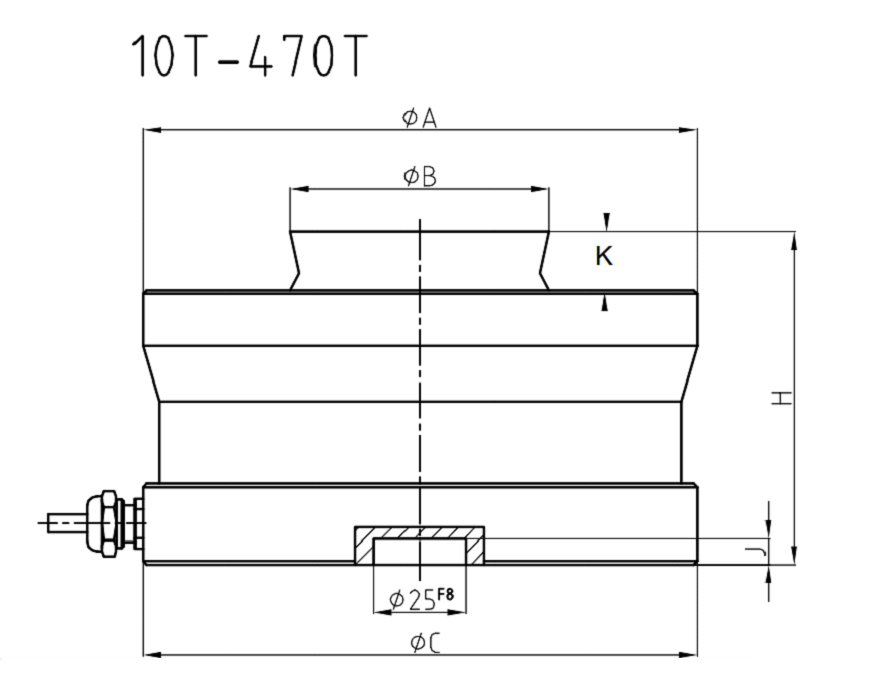

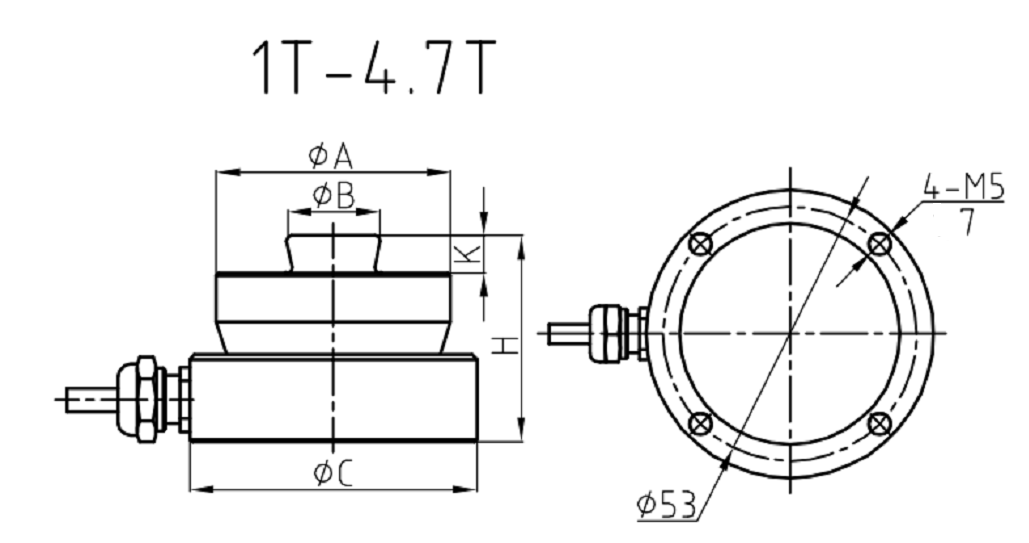

Main Dimensions and Accessories(mm)

NHS

NHS

Capacity

ΦA

ΦB

ΦC

H

J

K

1~4.7   t

50

20

60

43

-

7.5

10t~22   t

75

30

75

50


6.5

33t

95

40

95

65

7

10

47t

130

60

130

75

7

14

68t

130

60

130

85

7

14

100t

150

70

150

90

7

16

150t

150

70

150

100

7

16



Specifications

Capacity

1~150t

Zero balance

±1%F.S

Rated output

2.85mv/v±0.1%

Input resistance

1450±100Ω

Accuracy class

0.05

Output resistance

1400±5Ω

Non-linearity

0.1%F.S

Safe overload

150%F.S

Hysteresis

0.1%F.S

Ultimate overload

200%F.S

Creep in 30 minutes

0.1%F.S

Excitation voltage

10~12V DC

Temperature effect span

0.03%F.S/10℃

Maximum excitation voltage

15V DC

Temperature effect zero

0.03%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+70℃

Material              Alloy steel/Stainless   steel

Cable:  8~16m

Wring:   +Exc (Red) ;-Exc (Black);+Sig (Green);-Sig   (White)
