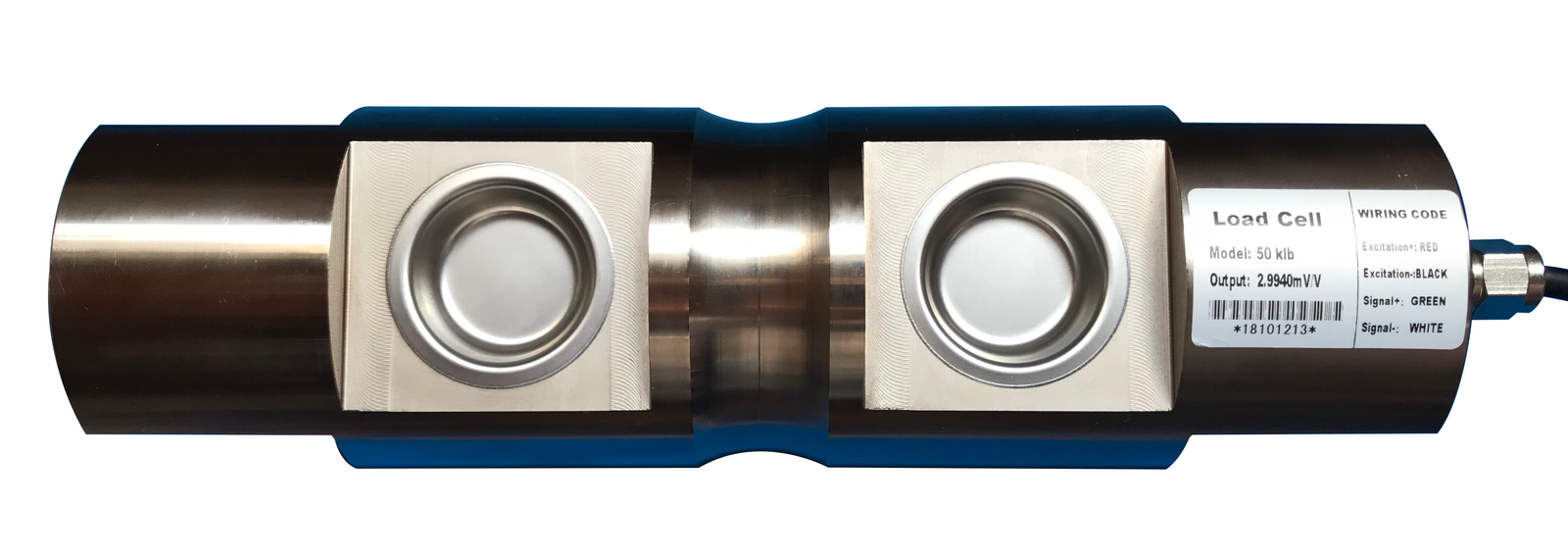

A-DESB09 Double Ended Shear Beam load cell

 DESB09-ZL

Description

A-DESB09 double ended shear beam load cell have unique floating bearing structure. Self-resetting,good side force resistance and shock resistance. Moisture proof sealed,ideal for hostile environment..



Applications

  • Railway scale

  • Truck scale

  • Axle wheel scale

  • Warehouse scale

  • Hooper scale

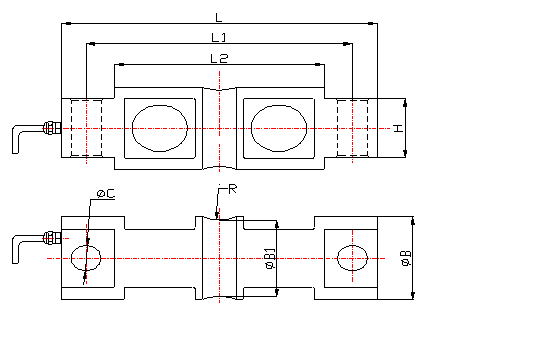

Main Dimensions and Accessories(mm)

 DESB09-SZ

Capacity

Size/mm

klb

L

L1

L2

H

ФB

ФB1

ФC

R

5;10

206.2

174.6

133.0

28.5

43.2

37.6

16.8

12.7

20;25

206.2

174.6

133.0

28.5

49.5

37.6

16.8

12.7

30;50;75

260

216

165

60.2

76.2

69.3

27

25.4

100

286.0

241.3

190.2

63.5

88

82.3

27

38.1



Specifications

Capacity

5~100klb

Input resistance

750±10Ω

Rated output

3.0mv/v±0.1%

Output resistance

702±3Ω

Total error

0.03, C3

Safe overload

150%F.S

Creep in 30 minutes

<±0.02%F.S

Ultimate overload

200%F.S

Temperature effect span

<±0.02%F.S/10℃

Excitation voltage

10V AC/DC

Temperature effect zero

<±0.02%F.S/10℃

Maximum excitation voltage

15V AC/DC

Compensated temperature range

-10~+40℃

Insulation resistance

≥5000MΩ

Operating temperature range

-30~+70℃

Environmental protection

IP68

Zero balance

±1%F.S

Material            Allow   steel

Cable: 8m@5~10klb; 12m@20~75klb;   16m@100klb

Wring: +Exc (Red) ;-Exc   (Black);+Sig   (Green);-Sig   (White)
