A-DESB06

Double Ended Shear Beam Load Cell
Quantity:
  • A-DESB06
  • ANE
  • alloy steel

A-DESB06 Double Ended Shear Beam load cell

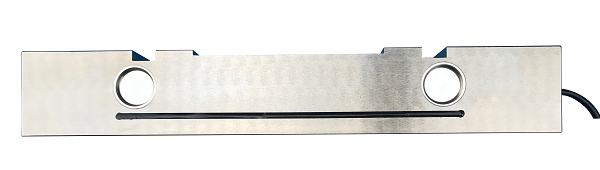

 DESB06-ZL

Description

A-DESB06 double ended shear beam load cell have Simple and reliable load bearing, easy to installation and changing, suitable for various railway scale



Main Dimensions and Accessories(mm)

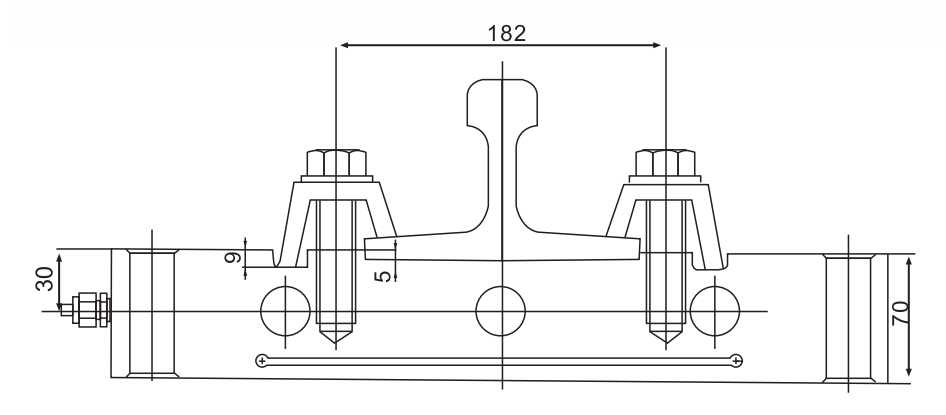

DESB06-SZ1

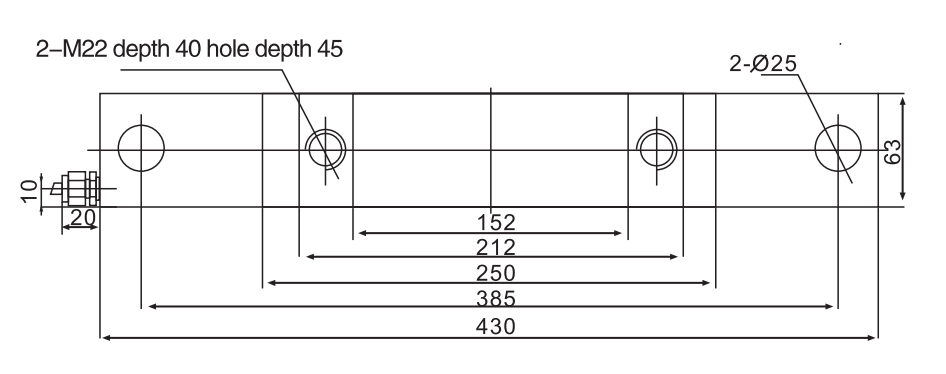

DESB06-SZ2

Specifications

Capacity

12.5, 20, 30 ton

Sensitivity

2.0±0.002mV/V

Input resistance

750±10Ω

Total error

±0.3%F.S

Output resistance

702±3Ω

Creep in 30 minutes

<±0.03%F.S

Safe overload

150%F.S

Temperature effect span

<±0.02%F.S/10℃

Excitation voltage

10 ~12V DC

Temperature effect zero

<±0.02%F.S/10℃

Maximum excitation voltage

15V DC

Compensated temperature range

-10~+40℃

Insulation resistance

≥5000MΩ

Operating temperature range

-30~+70℃

Environmental protection

IP67/68

Zero balance

±1%F.S

Material              Alloy steel

Cable:  12 m

Wring: +Exc (Red) ;-Exc   (Black);+Sig (Green);-Sig (White)
