A-DESB01

Double Ended Shear Beam Load Cell
Quantity:
  • A-DESB01
  • ANE
  • alloy steel

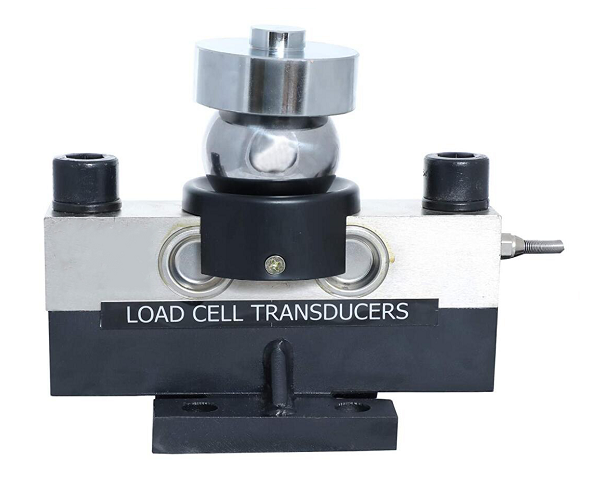

A-DESB01 Double ended shear beam load cell

QS



Description

Unique bridge structure,cup and steel ball mounted,Self-resetting and centering,good side force resistance and shock resistance. Moisture proof sealed,ideal for hostile environment,Simple to install,easy to use,good interchangeability suitable for electronic truck scale,railroad scale,hopper scale and various special scales.



Application

  • Truck scale

  • Railroad scale

  • Hopper scale

  • Storage scale

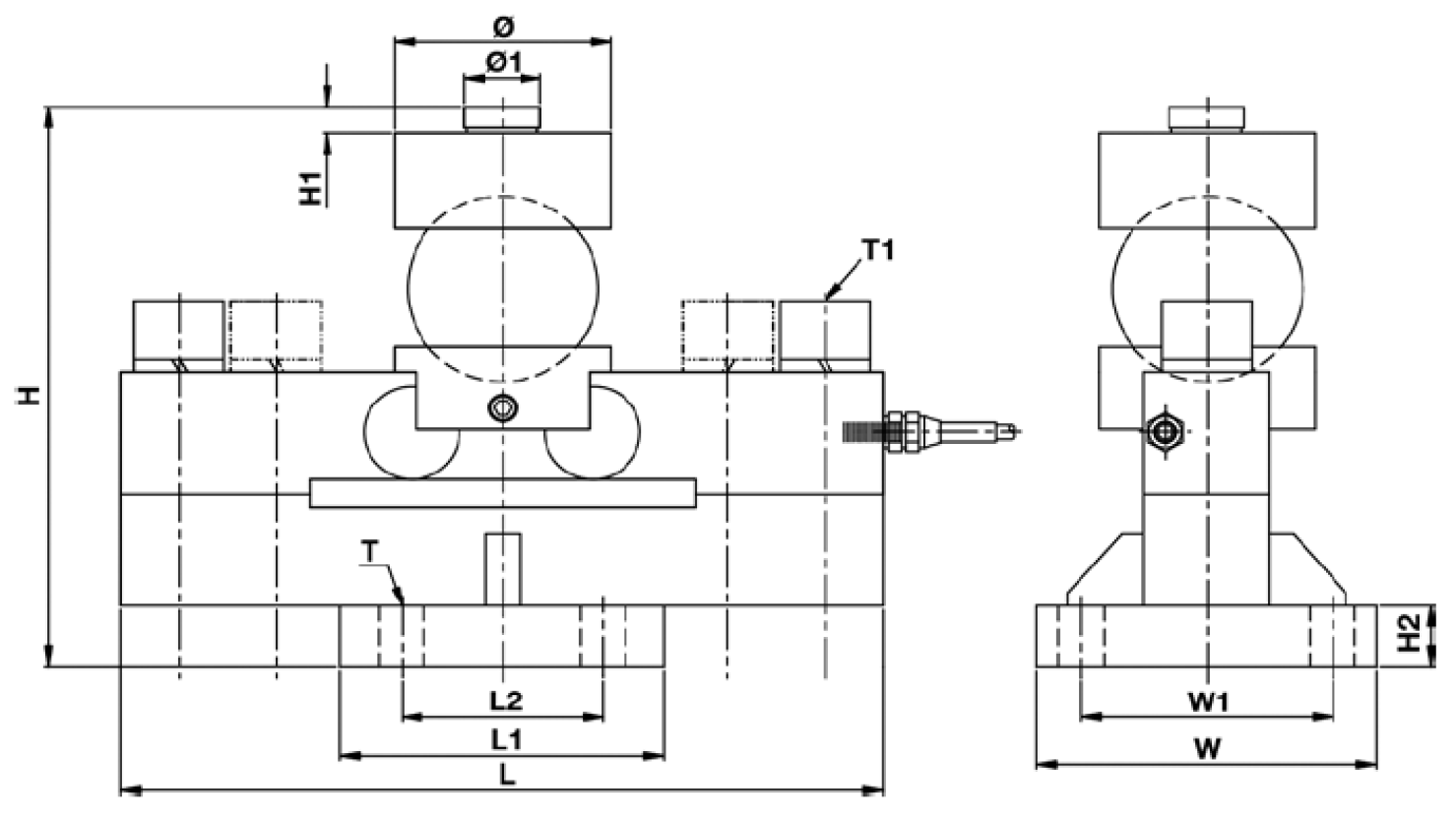

Main Dimensions and Accessories

size

CAPACITY


L

L1

L2

H

H1

H2

Ø

Ø1

W

W1

T

T1

10;20 ;25; 30;40t

mm

240

125

80

229.3

11

20

88

30

135

100

4-Ø18

2-M24

(inch)

9.45

4.92

3.15

8.85

0.43

0.79

3.46

1.18

5.31

3.94

40;50T

mm

340

160

124

261

11

20

98

40

160

124

4-Ø21

4-M24

(inch)

13.38

6.30

4.88

10.28

0.43

0.79

3.86

1.57

6.30

4.88



Specifications

Capacity

10~50t

Input resistance

750±15Ω

Rated output

2.0mV/V±0.1%

Output resistance

702±3Ω

Total error

0.03,C3

Safe overload

150%F.S

Creep in 30 minutes

<±0.02%F.S

Ultimate overload

300%F.S

Temperature effect span

<±0.02%F.S/10℃

Excitation voltage

10V AC/DC

Temperature effect zero

<±0.02%F.S/10℃

Maximum excitation voltage

15V AC/DC

Compensated temperature range

-10~+40℃

Insulation resistance

≥5000MΩ

Operating temperature range

-30~+70℃

Environmental protection

IP68

Zero balance

±1%F.S

Material      Allow steel

Cable: 8m@10t; 10m@15t; 12m/16m@20t&25t&30t&40t;   16m@50t

Wring: +Exc (Red) ;-Exc   (Black);+Sig   (Green);-Sig   (White)
