A-CT10

Column Type Compression Load Cell
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • A-CT10

  • ANE

  • alloy steel

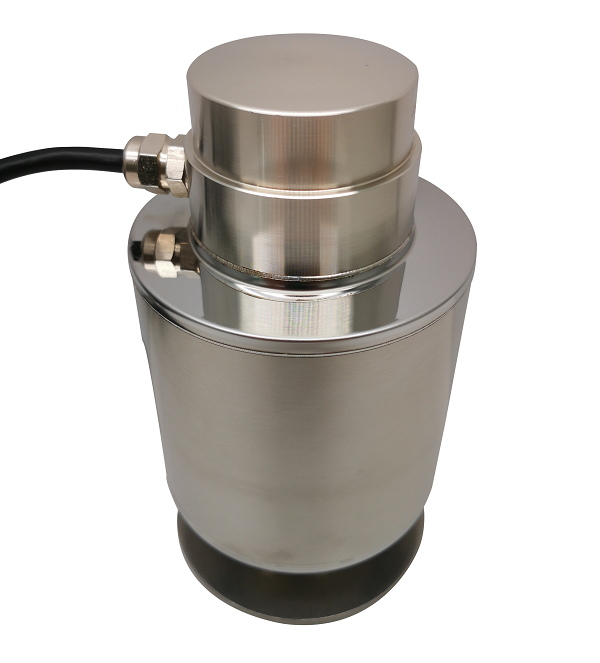

A-CT10 Column type load cell



A-CT10

 Description

A-CT10 column type load cell with hermetically sealed structure, fast dynamic response, strong anti-overload capability, upper ball head load bearing. It is simple to install, easy to use.



Application

  • Electronic truck scale

  • Dynamic railroad scale

  • Axle load scale

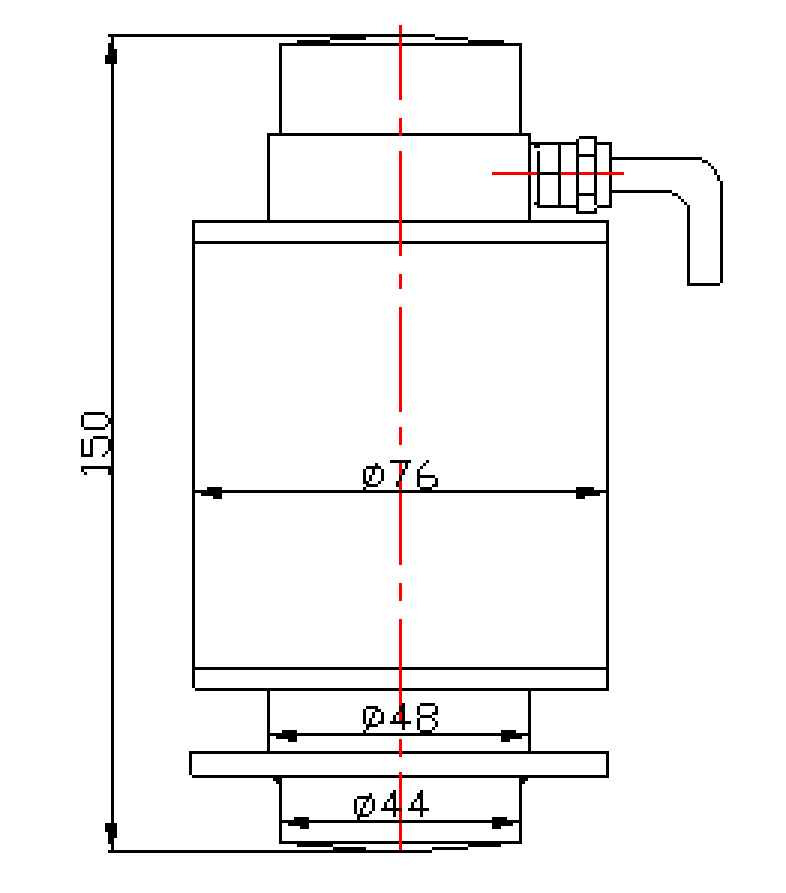

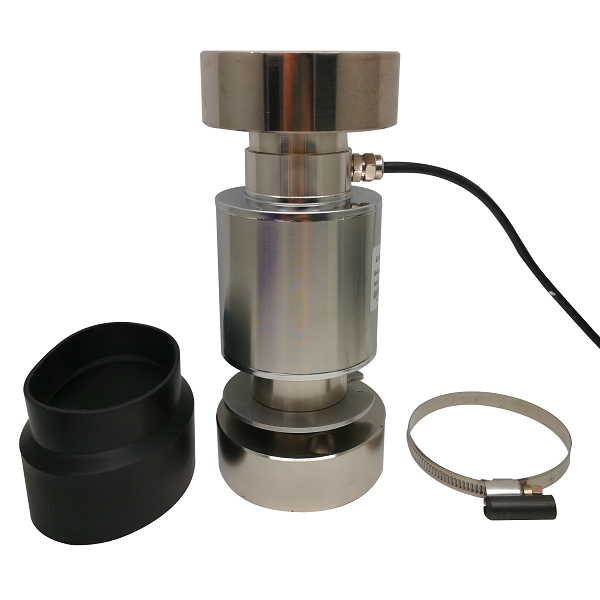

Main Dimensions and Accessories(mm)

SIZE

Specifications

Capacity

10~50t

Zero balance

±1%F.S

Rated output

2.0mv/v±0.1%

Input resistance

700±10Ω

Accuracy class

0.03,0.05

Output resistance

702±3Ω

Non-linearity

0.03%F.S

Safe overload

150%F.S

Hysteresis

0.03%F.S

Ultimate overload

250%F.S

Creep in 30 minutes

0.03%F.S

Excitation voltage

10V AC/DC

Temperature effect span

0.015%F.S/10℃

Maximum excitation voltage

15V AC/DC

Temperature effect zero

0.02%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP67

Operating temperature range

-30~+65℃

Material      Alloy steels/Stainless steel
