A-BT09

Full Stainless Steel Below Type Load Cell
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • A-BT06

  • ANE

  • Stainless steel

A-BT06 full stainless steel below type load cell

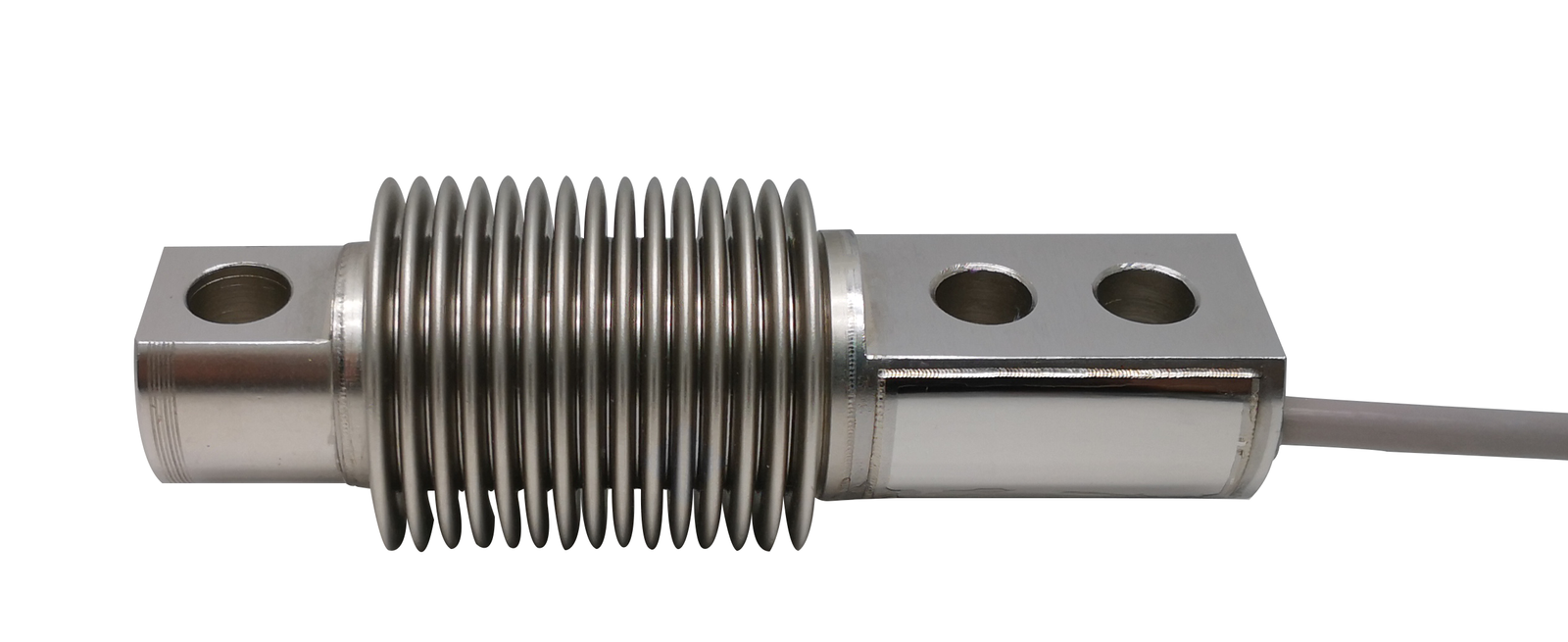

BT09-ZL

Description

Welded bending stainless steel load cell. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales and variety of other applications where sealed cells are required.

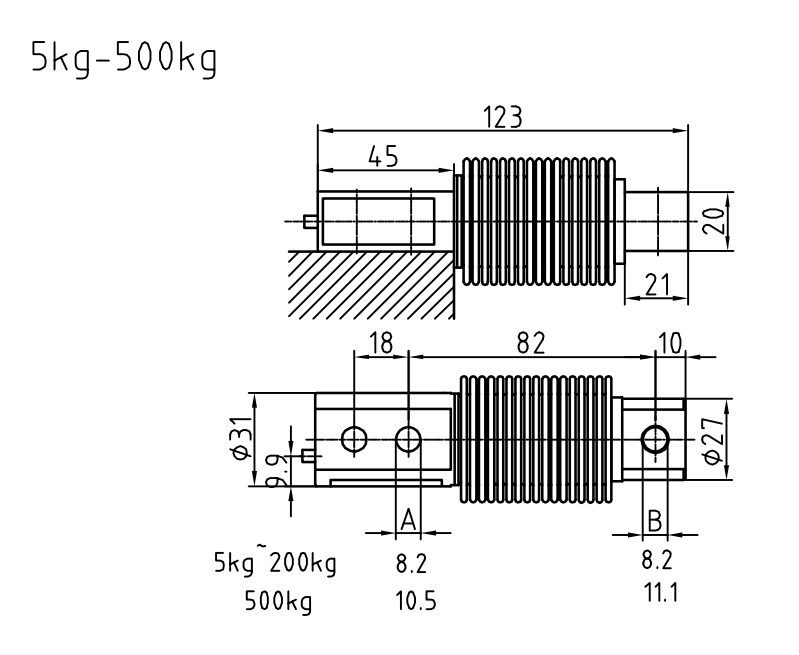

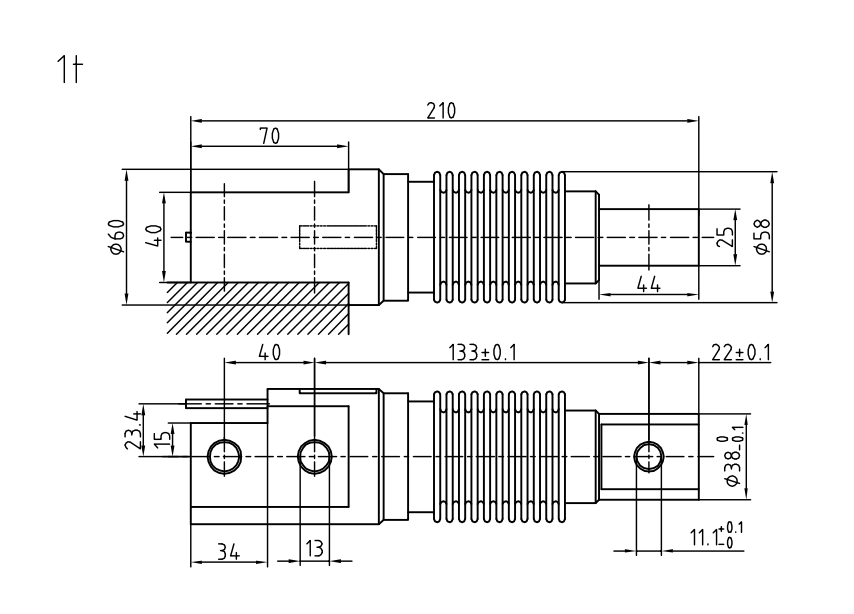

Main Dimensions and Accessories

 size1

size2

Specifications

Capacity

5~1000kg

Zero balance

±1%F.S

Rated output

2.0mv/v±0.1%

Input resistance

400±50Ω

Accuracy class

C3,D1

Output resistance

356±1Ω

Non-linearity

0.02,0.05%F.S

Safe overload

150%F.S

Hysteresis

0.02,0.05%F.S

Ultimate overload

300%F.S

Creep in 30 minutes

0.02,0.05%F.S

Excitation voltage

10V AC/DC

Temperature effect span

0.015%F.S/10℃

Maximum excitation voltage

15V AC/DC

Temperature effect zero

0.012%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+70℃

Material       Stainless steel

Capacity: 5;10;20;50;100;200;500;1000kg

Cable:  3m

Wring: +Exc (Blue); -Exc (Black); +Sig (White); -Sig(Red); +Sen (Green); -Sen (Grey)
