A-BT01

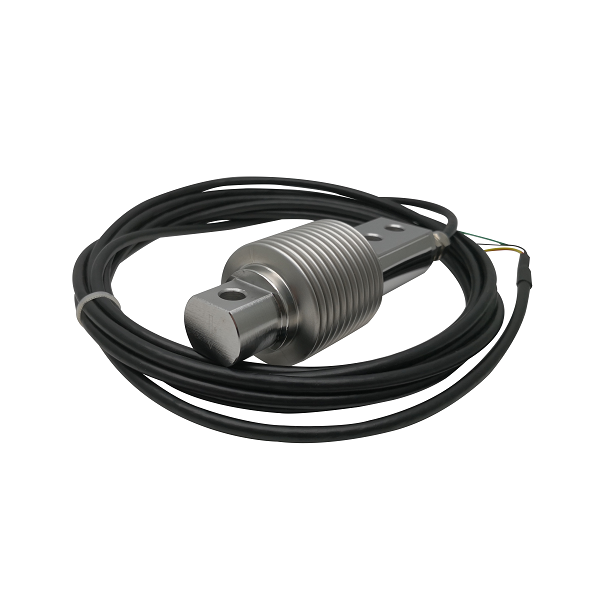

Bending Stainless Steel Load Cell
Quantity:
  • A-BT01
  • NBANE
  • Stainless steel

A-BT01 below type load cell

A-BT01-C

Description

Welded bending stainless steel load cell. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales and variety of other applications where sealed cells are required.


Application

  • Low profile platforms

  • Loss-in-weight feeders

  • Marine and hybrid scales

  • Belt weighers

  • Food industry harsh environment



Main Dimensions and Accessories

SIZE

Capacity

Size mm

kg

D

5;10;20;50;100;200;250

8.2

300;500

10.2



Specifications

Capacity

5~500kg

Zero balance

±1%F.S

Rated output

2.0mV/V±0.1%

Input resistance

380±10Ω

Accuracy class

C3,0.05

Output resistance

351±3Ω

Non-linearity

0.02,0.05%F.S

Safe overload

150%F.S

Hysteresis

0.02,0.05%F.S

Ultimate overload

300%F.S

Creep in 30 minutes

0.02,0.05%F.S

Excitation voltage

10V AC/DC

Temperature effect span

0.015%F.S/10℃

Maximum excitation voltage

15V AC/DC

Temperature effect zero

0.012%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP68

Operating temperature range

-30~+65℃

Material       Stainless steel

Cable:  4m

Wring: +Exc (Red) ;-Exc   (Black);+Sig   (Green);-Sig   (White)
