A-ALT08

Aluminum Parallel Beam Load Cell

Quantity:
  • A-ALT08
  • NBANE
  • aluminum

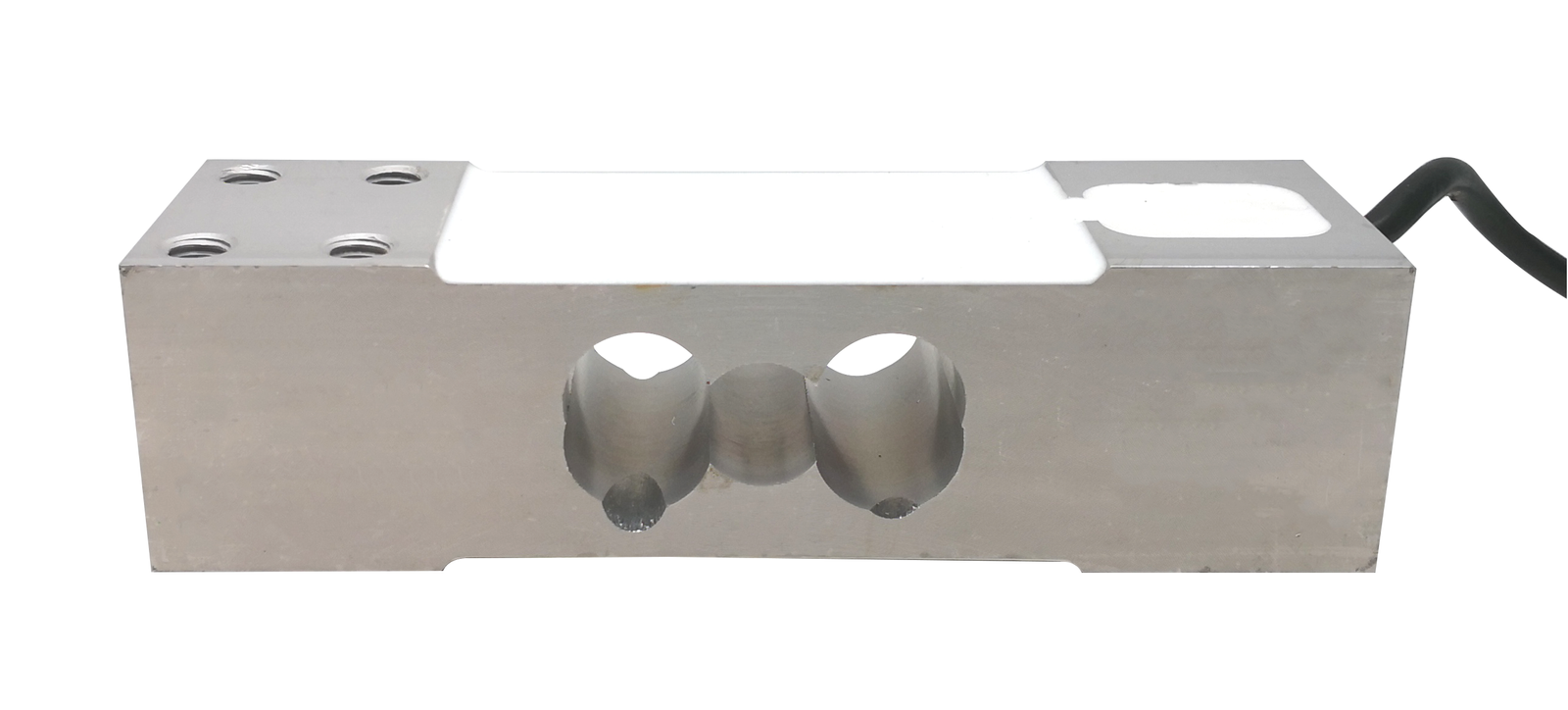

A-ALT08 single point load cell

A-ALT08

Description

A-ALT08 is strain gauge based load cell constructed from aluminum alloy for high accuracy. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.



Application

  • Electronic scale

  • Floor scale

  • Compression testing device

  • Other weighing equipment

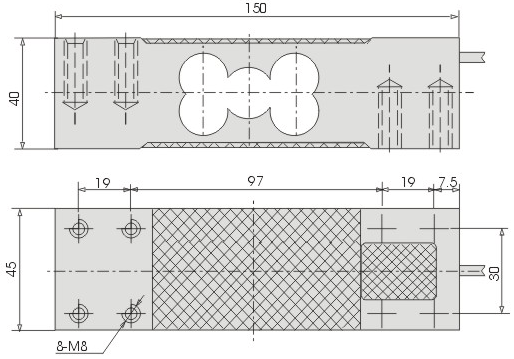

Main Dimensions and Accessories(mm)

1545708455013067090.pngSIZE

 Specifications

Capacity

60~300kg

Zero balance

±2%F.S

Rated output

2.0mV/V±0.1%

Input resistance

405±10Ω

Accuracy class

C3,0.05

Output resistance

350±3Ω

Non-linearity

0.02,0.05%F.S

Safe overload

120%F.S

Hysteresis

0.02,0.05%F.S

Ultimate overload

150%F.S

Creep in 30 minutes

0.02,0.05%F.S

Excitation voltage

9~12V DC

Temperature effect span

0.015%F.S/10℃

Insulation resistance

≥5000MΩ

Temperature effect zero

0.017%F.S/10℃

Environmental protection

IP65

Compensated temperature range

-10~+40℃



Operating temperature range

-20~+60℃

Material       Aluminum

Cable: Φ5*3m

Wring: Green(EXC+), Black(EXC-), Green(SIG+), White(SIG-),   Yellow(Shield)
