A-ALT06

Aluminum Parallel Beam Load Cell

Quantity:
  • A-ALT06
  • NBANE
  • aluminum

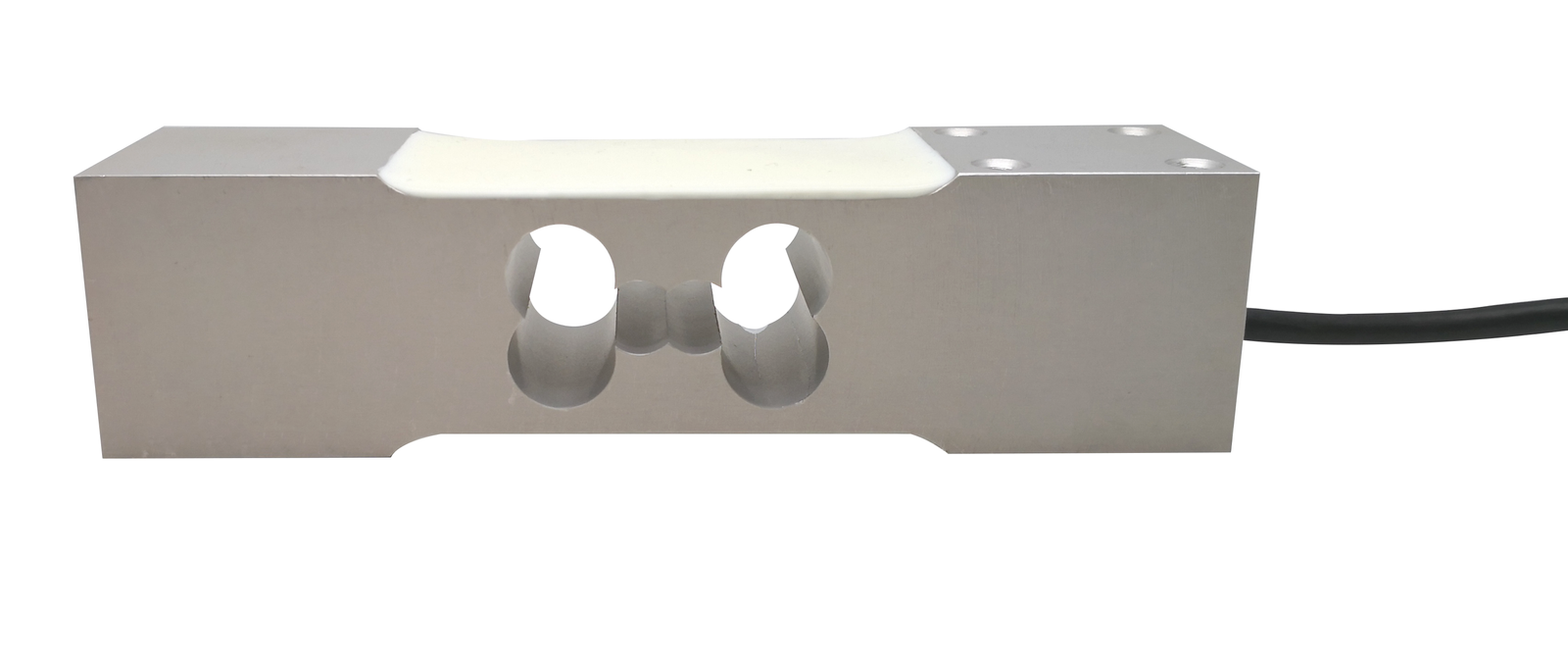

A-ALT06 single point load cell

 A-ALT06

Description

A-ALT06 is strain gauge based load cell constructed from aluminum alloy for high accuracy. With a low profile design, it is mainly used in bench scales and smaller floor scales, suitable for platform size up to 400X400mm.



Application

  • Bench scale

  • Floor scale

  • Compression testing device

  • Other weighing equipment



Main Dimensions and Accessories(mm)

 SIZE1

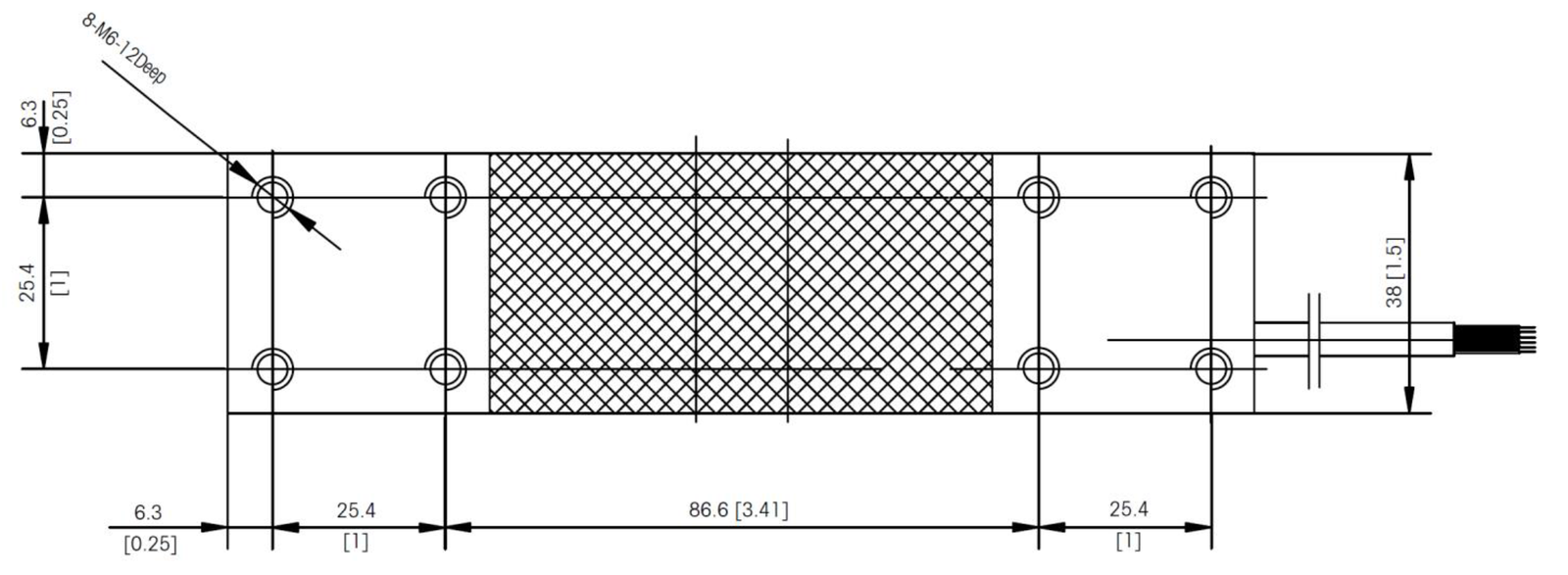

SIZE 2

Specifications

Capacity

30~250kg

Zero balance

±2%F.S

Rated output

2.0mV/V±0.1%

Input resistance

410±10Ω

Accuracy class

C3,0.05

Output resistance

350±3Ω

Non-linearity

0.02,0.05%F.S

Safe overload

150%F.S

Hysteresis

0.02,0.05%F.S

Ultimate overload

300%F.S

Creep in 30 minutes

0.02,0.05%F.S

Excitation voltage

9~12V DC

Temperature effect span

0.015%F.S/10℃

Insulation resistance

≥5000MΩ

Temperature effect zero

0.017%F.S/10℃

Environmental protection

IP67

Compensated temperature range

-10~+40℃



Operating temperature range

-30~+65℃

Material       Aluminum

Cable: Φ5*3m

Wring: Green(EXC+), Black(EXC-), Red(SIG+), White(SIG-),   Blue(Sen+), Brown(Sen-), Yellow(Shield)
