A-ALT02

Aluminum Parallel Beam Load Cell

Quantity:
  • A-ALT02
  • NBANE
  • aluminum

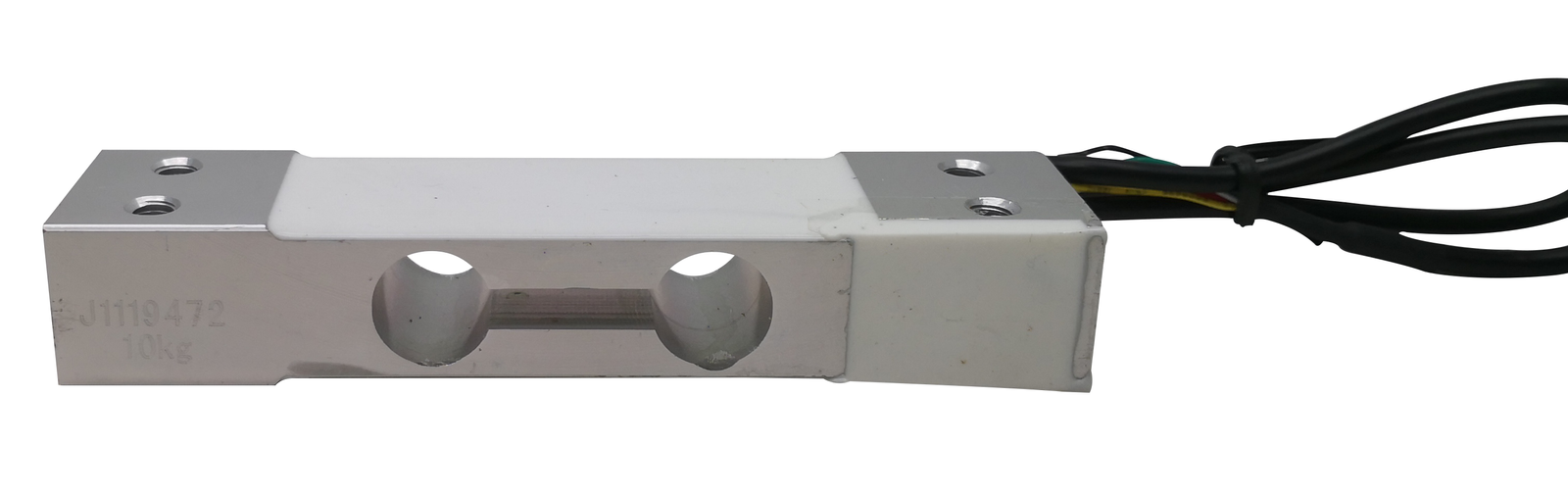

A-ALT02 Single point load cell

 A-ALT02

Description

A-ALT02 is strain gauge based load cell constructed from aluminum alloy for high accuracy. It is mainly used in check weighing, suitable for pan size up to 250X350mm.



Application

  • Table top machines

  • Bench scale

  • Price computing scale

  • Retail scales electronic counting scales

  • Check weighing scales

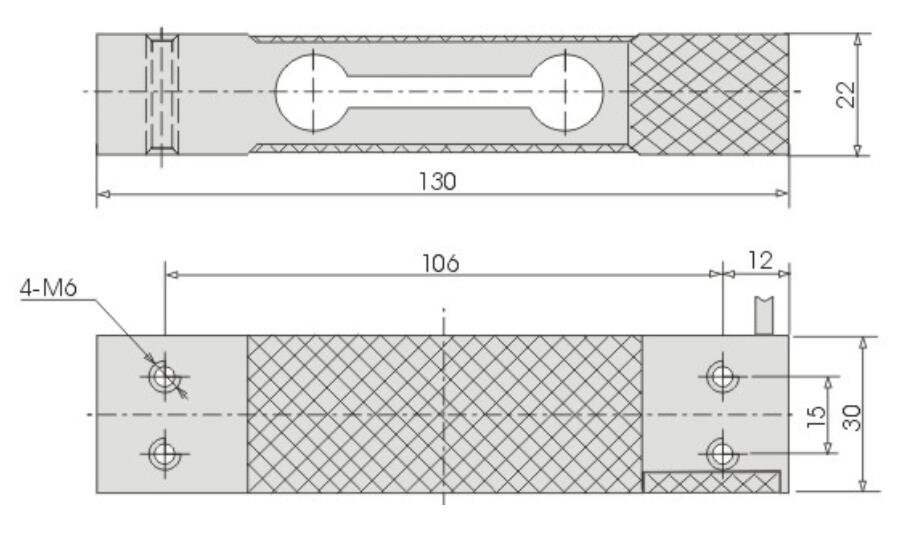

Main Dimensions(mm)

  size

Specifications

Capacity

5~60 kg

Zero balance

±1%F.S

Rated output

2.0mV/V±0.1%

Input resistance

400±10Ω

Accuracy class

C3,0.05

Output resistance

350±5Ω

Non-linearity

0.02%F.S

Safe overload

120%F.S

Hysteresis

0.02%F.S

Ultimate overload

150%F.S

Creep in 30 minutes

0.02%F.S

Excitation voltage

9V AC/DC

Temperature effect span

0.02%F.S/10℃

Maximum excitation voltage

12V AC/DC

Temperature effect zero

0.02%F.S/10℃

Insulation resistance

≥5000MΩ

Compensated temperature range

-10~+40℃

Environmental protection

IP67

Operating temperature range

-30~+65℃

Material       Aluminum steel

Cable:  4m

Wring: +Exc (Red) ;-Exc   (Black);+Sig   (Green);-Sig   (White)
